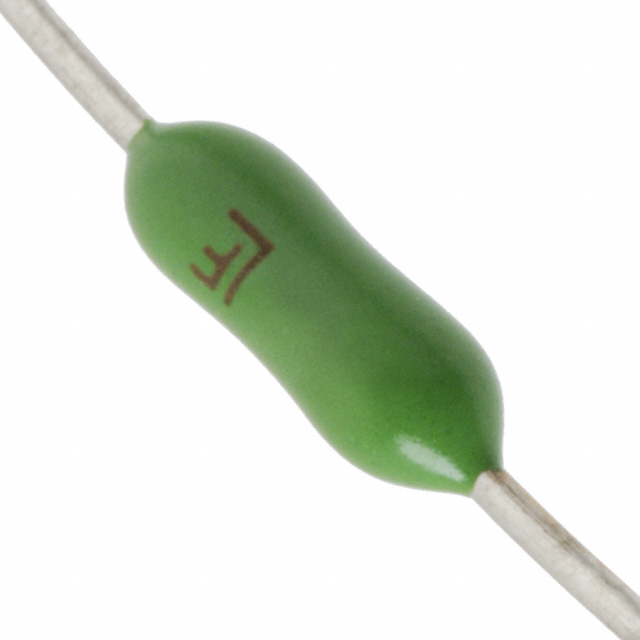

LITTELFUSE 0251.750MAT1L 保险丝, PCB, 750MA, 125V, 超快反应, 整卷
Be protected by adding a subminiature fuse developed by . This device has a current rating of 0.75. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 0251.750MAT1L fuse has an axial termination style. Its fuse is made from ceramic. The maximum AC voltage rating is 125 VAC. This product is 7.11 mm long with a diameter of 2.8Max mm.
额定电压DC 125 V
额定电压AC 125 V
额定电流 750 mA
易燃性等级 UL 94 V-0
电阻 0.175 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 125 V
额定电压AC Max 125 V
安装方式 Through Hole
引脚数 2
封装 Axial Leaded
长度 7.11 mm
直径 2.41 mm
脚长度 27.78 mm
封装 Axial Leaded
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape, Ammo Pack
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0251.750MAT1L Littelfuse 力特 | 当前型号 | 当前型号 |
0251.750MRT1L 力特 | 完全替代 | 0251.750MAT1L和0251.750MRT1L的区别 |
0251.750NAT1L 力特 | 完全替代 | 0251.750MAT1L和0251.750NAT1L的区别 |
0251.750PAT1L 力特 | 完全替代 | 0251.750MAT1L和0251.750PAT1L的区别 |
