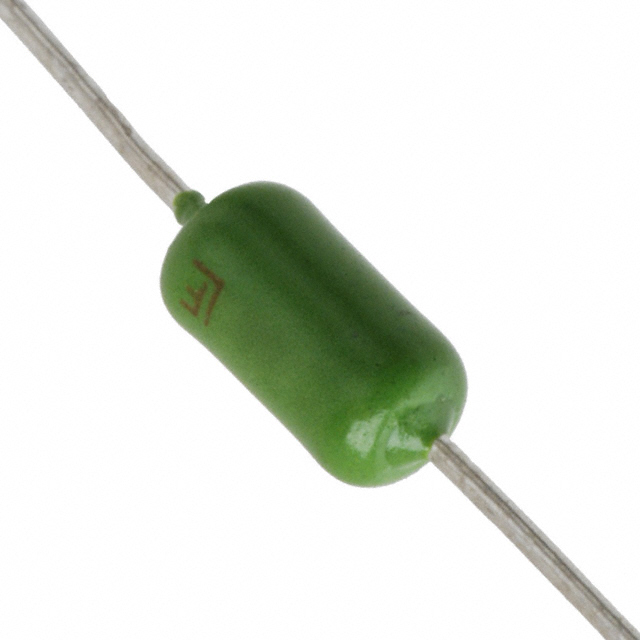

263 系列 特快熔断 250 V 0.125 A 3.68 x 7.62 mm 轴向引线 PICO® II 保险丝
A great alternative to a circuit breaker, this a subminiature fuse from will protect your electronics. This device has a current rating of 0.125. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 0263.125MXL fuse has an axial termination style. This product comes packaged in bulk, so the parts will be stored loosely. Its fuse is made from solder. The maximum AC voltage rating is 250 VAC. This product is 7.11 mm long with a diameter of 3.94Max mm.
额定电压DC 250 V
额定电压AC 250 V
额定电流 0.125 A
电阻 1.745 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 250 V
额定电压AC Max 250 V
安装方式 Through Hole
引脚数 2
封装 Axial
长度 7.62 mm
直径 3.68 mm
封装 Axial
颜色 Green
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
