0010897061

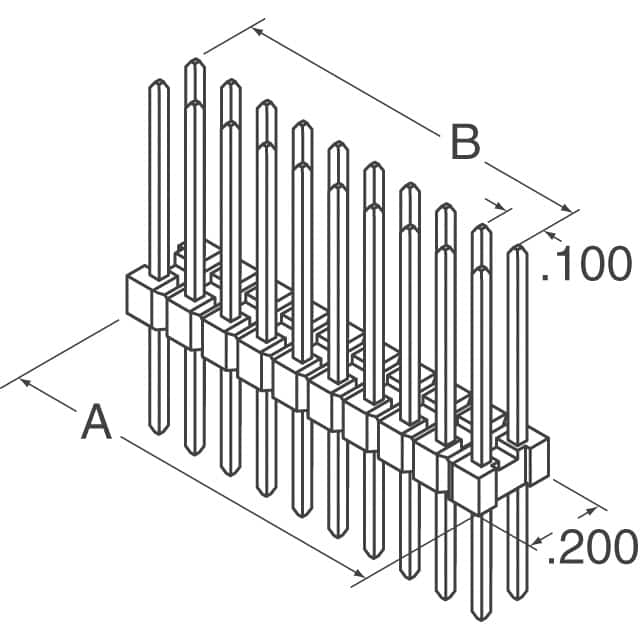

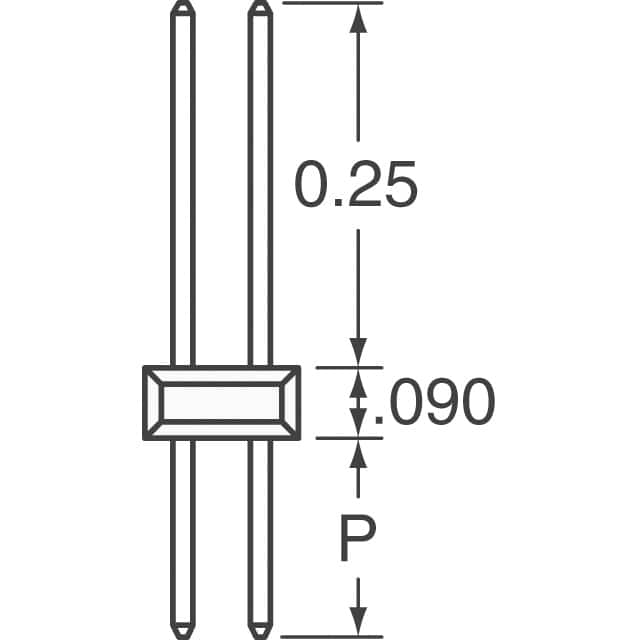

2.54毫米（ .100“ ）间距C- Grid®分离针座，双排，垂直，高温， 6电路，锡（Sn ）镀层， 2.72毫米（ 0.107 ” ） PCB焊脚长度 2.54mm .100" Pitch C-Grid® Breakaway Header, Dual Row, Vertical, High Temperature, 6 Circuits, Tin Sn Plating, 2.72mm .107" PC Tail Length

针座 通孔 6 位置 0.100"（2.54mm）

得捷:
CONN HEADER VERT 6POS 2.54MM

立创商城:
2.54mm 方针

艾睿:
Support physical configuration options for jumper posts by mounting this unshrouded 0010897061 header connector from Molex. This HDR connector&s;s 6 contacts that are made out of copper alloy and plated with tin over nickel. It has a header type gender. Its pitch is 2.54 mm. It has a maximum voltage rating of 250 V. It has a straight body orientation. This is a 2-row connector. This device has a maximum current rating of 3 A/contact. This product is 7.62 mm long, 8.39 mm tall and 5.08 mm deep. This connector has an operating temperature of -40 to 105 °C. 0010897061 is housed in black liquid crystal polymer. It uses the solder termination method.

Verical:
Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole C-Grid® Bag
