表面贴装保险丝NANO2® \u003e SLO- Blo® \u003e 449系列 Surface Mount Fuses NANO2® > Slo-Blo® > 449 Series

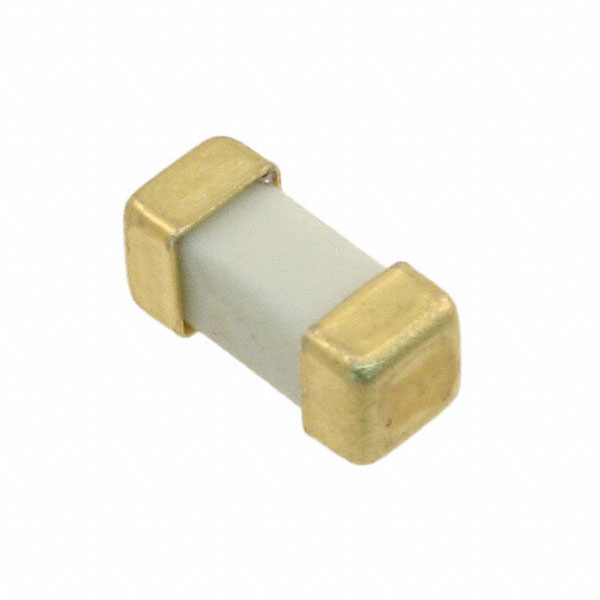

The NANO2 449 series Slo-Blo® surface-mount Time Lag Fuse made of ceramic body with gold-plated caps. It is fully compatible with lead-free solder alloys and higher temperature profiles associated with lead-free assembly. The Slo-Blo® design has enhanced inrush withstand characteristics over the NANO² fast-acting fuse. The unique time delay feature of this fuse design helps to solve the problem of nuisance opening by accommodating inrush current that normally cause a fast-acting fuse to open.
- .
- Small size, square shape
- .
- Low temperature de-rating
- .
- Halogen-free
- .
- -55 to 125°C Operating temperature range
额定电压DC 125 V
额定电压AC 125 V
额定电流 0.375 A
电阻 1.513 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 125 V
额定电压DC Max 125 V
额定电压AC Max 125 V
安装方式 Surface Mount
引脚数 2
封装 SMD-2
长度 6.1 mm
宽度 2.69 mm
高度 2.69 mm
封装 SMD-2
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Automation & Process Control, Industrial, Communications & Networking, Safety, Computers & Computer Peripherals, Power Management, Automotive, Consumer Electronics, Medical, HVAC
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
