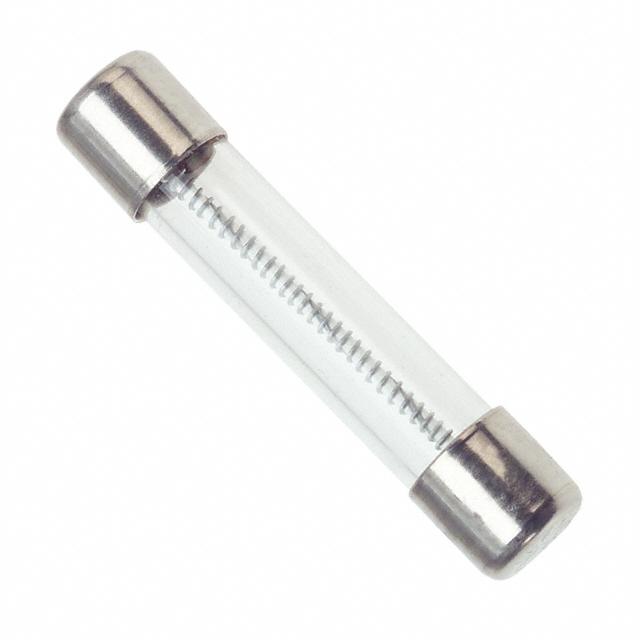

三百十五分之三百一十三系列无铅3AG ， SLO- Blo®保险丝 313/315 Series Lead-Free 3AG, Slo-Blo® Fuse
A great alternative to a circuit breaker, this a miniature fuse from will protect your electronics. This device has a current rating of 10. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 0313010.MXP fuse has a cartridge termination style. This product comes packaged in bulk, so the parts will be stored loosely. The maximum AC voltage rating is 32 VAC. Its fuse is made from glass. This product is 31.75 mm long with a diameter of 6.35 mm.
触点电镀 Nickel
额定电压DC 32.0 V
额定电压AC 32 V
额定电流 10 A
电阻 0.0082 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 32 V
额定电压AC Max 32 V
引脚数 2
封装 3AB, 3AG, 1/4" x 1-1/4"
长度 31.75 mm
直径 6.35 mm
封装 3AB, 3AG, 1/4" x 1-1/4"
触点材质 Brass
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
制造应用 Safety
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0313010.MXP Littelfuse 力特 | 当前型号 | 当前型号 |
0313010.VXP 力特 | 完全替代 | 0313010.MXP和0313010.VXP的区别 |
0313010.HXP 力特 | 类似代替 | 0313010.MXP和0313010.HXP的区别 |
313010 力特 | 类似代替 | 0313010.MXP和313010的区别 |
