0449005.MR概述

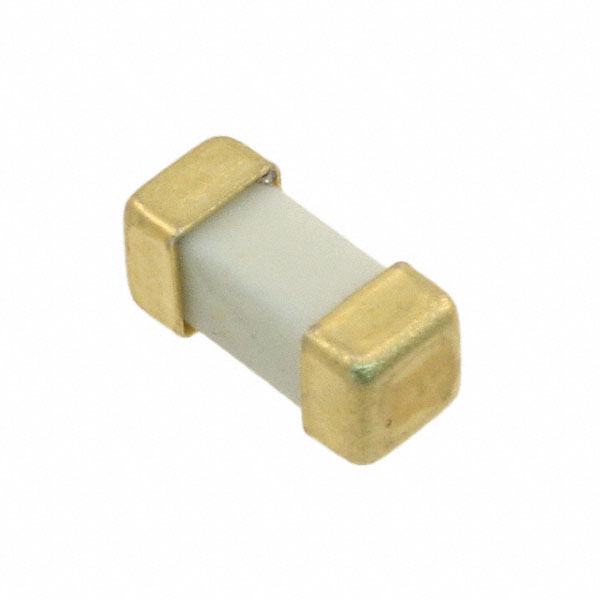

LITTELFUSE 0449005.MR 保险丝, SMD, 慢熔型, 5A

The is a 5A surface mount Time Delay Fuse with ceramic body and gold-plated caps terminations. The NANO²® Slo-Blo® fuse is fully compatible with lead-free solder alloys and higher temperature profiles associated with lead-free assembly. The Slo-Blo® fuse design has enhanced inrush withstand characteristics over the NANO²® fast-acting fuse. The unique time delay feature of this fuse design helps solve the problem of nuisance opening by accommodating inrush currents that normally cause a fast-acting fuse to open.

.: Low temperature rerating

.: -55 to 125°C Operating temperature range

0449005.MR中文资料参数规格

技术参数

额定电压DC 125 V

额定电压AC 125 V

额定电流 5 A

电阻 0.0171 Ω

工作温度Max 125 ℃

工作温度Min -55 ℃

额定电压 125 V

额定电压DC Max 125 V

额定电压AC Max 125 V

封装参数

安装方式 Surface Mount

引脚数 2

封装 SMD

外形尺寸

长度 6.1 mm

宽度 2.69 mm

高度 2.69 mm

封装 SMD

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用工业, 计算机和计算机周边, Power Management, 便携式器材, Industrial, 电源管理, Wireless, Communications & Networking, Portable Devices, 消费电子产品, 无线, Consumer Electronics, 通信与网络, Computers & Computer Peripherals

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2014/12/17

数据手册

0449005.MR引脚图与封装图
