324分之314系列无铅3AB ，快熔保险丝 314/324 Series Lead-free 3AB, Fast-acting Fuse

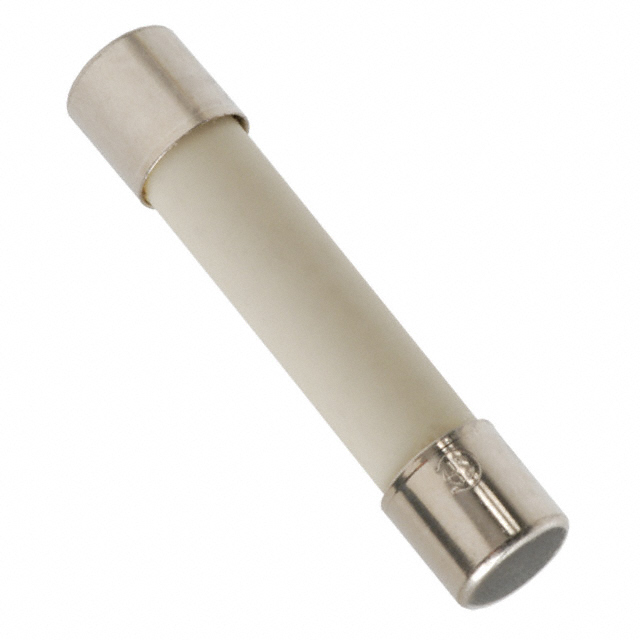

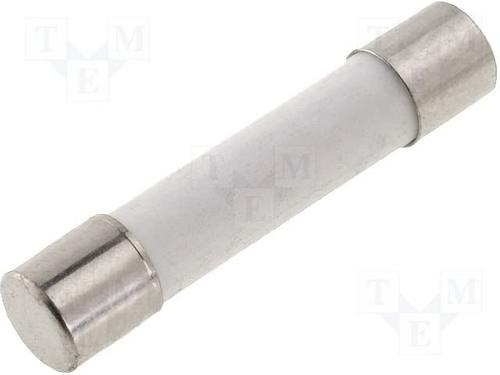

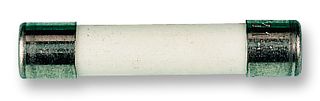

The 314 series Fast Acting Fuse made of ceramic body with nickel-plated brass end caps. It is used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits.
- .
- Reliable performance
- .
- In accordance with UL Standard 248-14
- .
- Available in cartridge and axial lead format and with various forming dimensions
- .
- -55 to 125°C Operating temperature range
触点电镀 Nickel
额定电压DC 125 V
额定电压AC 250 V
额定电流 8 A
电阻 0.0153 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 250 V
额定电压AC Max 250 V
引脚数 2
封装 3AB, 3AG, 1/4" x 1-1/4"
长度 31.75 mm
直径 6.35 mm
封装 3AB, 3AG, 1/4" x 1-1/4"
触点材质 Brass
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
制造应用 Industrial, Safety
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0314008.MXP Littelfuse 力特 | 当前型号 | 当前型号 |
0314008.HXP 力特 | 完全替代 | 0314008.MXP和0314008.HXP的区别 |
0324008.MXP 力特 | 完全替代 | 0314008.MXP和0324008.MXP的区别 |
324008 力特 | 完全替代 | 0314008.MXP和324008的区别 |
