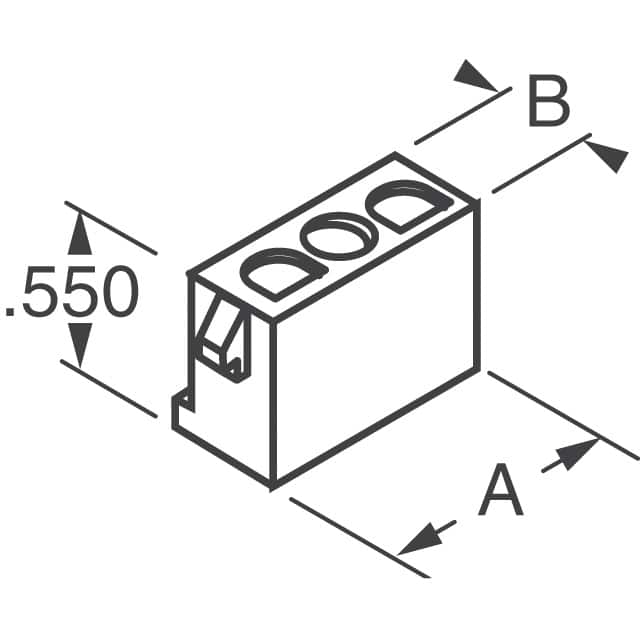

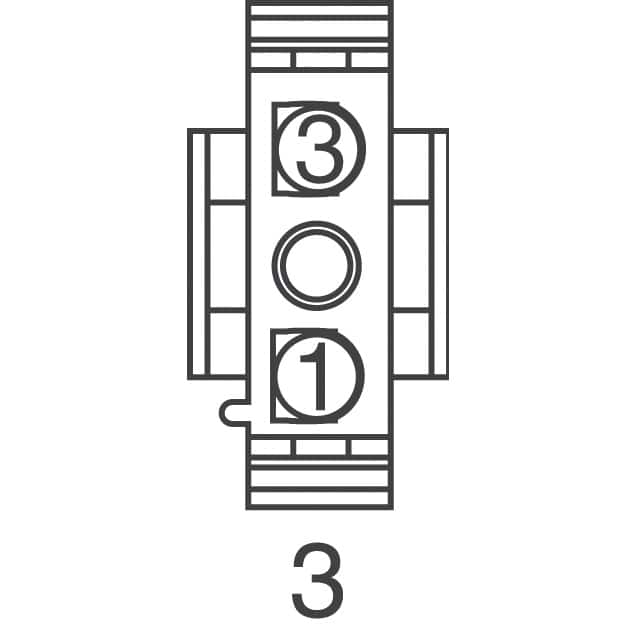

6.35毫米（ .250 ）间距MLX ™电源连接头，垂直， 3电路，PA聚酰胺尼龙6/6 94V - 2 ，锡（Sn ）镀层，白 6.35mm .250 Pitch MLX™ Power Connector Header, Vertical, 3 Circuits, PA Polyamide Nylon 6/6 94V-2, Tin Sn Plating, White
针座 位置
得捷:
CONN HEADER VERT 3POS 6.35MM
艾睿:
Easily connect a power supply to a circuit with this 0010844030 power connector from Molex. This M connector&s;s 3 contacts that are made out of phosphor bronze and plated with tin. It has a maximum voltage rating of 600 V. It has a male type gender. It has a straight body orientation. This connector has a single port. Its pitch is 6.35 mm. This device has a maximum current rating of 20 A/contact. 0010844030 is housed in nylon 6/6. Its 3 terminals use the solder termination method. This power connector has a minimum operating temperature of -55 °C and a maximum of 105 °C.
安富利:
Conn Wire to Board M 3 POS 6.35mm Solder ST Thru-Hole Bag
Chip1Stop:
Conn Wire to Board M 3 POS 6.35mm Solder ST Thru-Hole Bag
Verical:
Conn Wire to Board HDR 3 POS 6.35mm Solder ST Top Entry Thru-Hole MLX™ Bag
