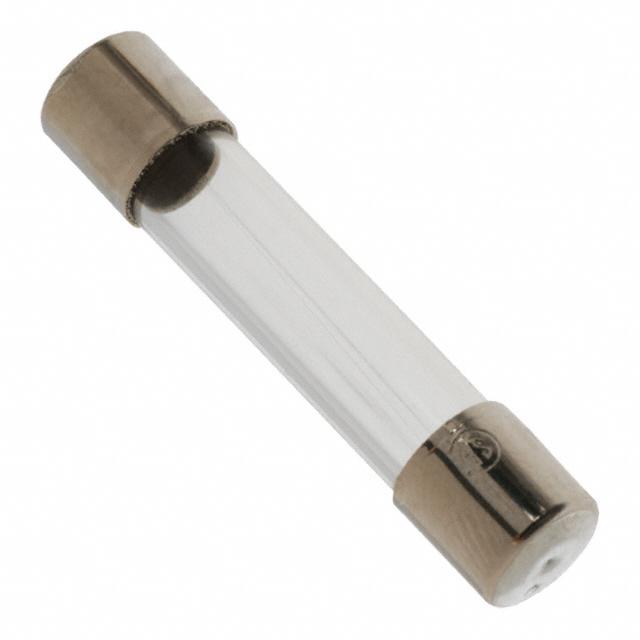

318分之312系列无铅3AG ，快熔保险丝 312/318 Series Lead-Free 3AG, Fast-Acting Fuse
A great alternative to a circuit breaker, this a miniature fuse from will protect your electronics. This device has a current rating of 0.25. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 0312.250MXP fuse has a cartridge termination style. This product comes packaged in bulk, so the parts will be stored loosely. The maximum AC voltage rating is 250 VAC. This product is 31.75 mm long with a diameter of 6.35 mm. Its fuse is made from glass.
触点电镀 Nickel
额定电压DC 250 V
额定电压AC 250 V
额定电流 250 mA
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 250 V
额定电压AC Max 250 V
引脚数 2
封装 3AB, 3AG, 1/4" x 1-1/4"
长度 31.75 mm
直径 6.35 mm
封装 3AB, 3AG, 1/4" x 1-1/4"
触点材质 Brass
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0312.250MXP Littelfuse 力特 | 当前型号 | 当前型号 |
312.250 力特 | 完全替代 | 0312.250MXP和312.250的区别 |
0318.250MXP 力特 | 完全替代 | 0312.250MXP和0318.250MXP的区别 |
0312.250HXP 力特 | 类似代替 | 0312.250MXP和0312.250HXP的区别 |
