0010897162

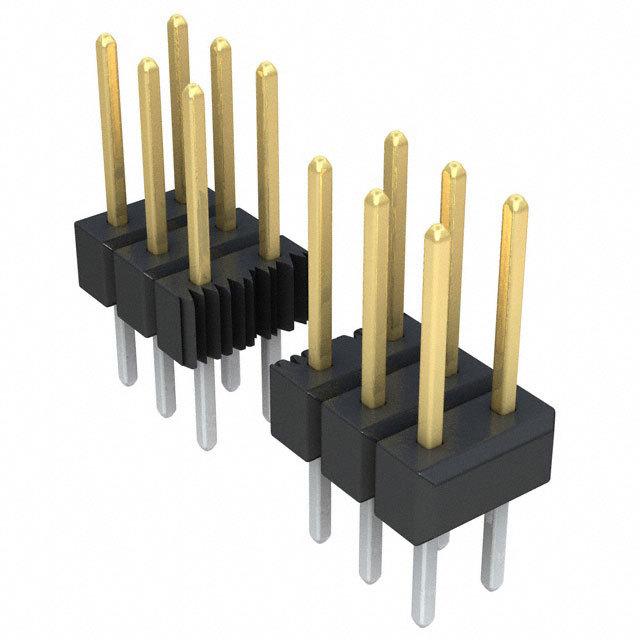

2.54毫米（ .100“ ）间距C- Grid®分离针座，双排，垂直，高温， 16电路， 0.38μm （ 15μ ”），金（Au ）选择性电镀，锡（Sn ） PC端脚镀层， 2.72毫米（ 0.107 “ ）的PC尾 2.54mm .100" Pitch C-Grid® Breakaway Header, Dual Row, Vertical, High Temperature, 16 Circuits, 0.38μm 15μ" Gold Au Selective Plating, Tin Sn PC Tail Plating, 2.72mm .107" PC Tail

针座 通孔 16 位置 0.100"（2.54mm）

得捷:
CONN HEADER VERT 16POS 2.54MM

艾睿:
Protect your printed circuit boards from accidental damages with Molex&s;s unshrouded 0010897162 header connector. This HDR connector&s;s 16 contacts that are made out of copper alloy and plated with gold over nickel. This is a 2-row connector. It has a straight body orientation. It has a header type gender. It has a maximum voltage rating of 250 V. Its pitch is 2.54 mm. This device has a maximum current rating of 3 A/contact. It uses the solder termination method. This product is 20.32 mm long, 8.39 mm tall and 5.08 mm deep. This connector has an operating temperature of -40 to 105 °C. 0010897162 is housed in black liquid crystal polymer.

Chip1Stop:
Conn Unshrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Bag

Verical:
Conn Unshrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole C-Grid® Bag
