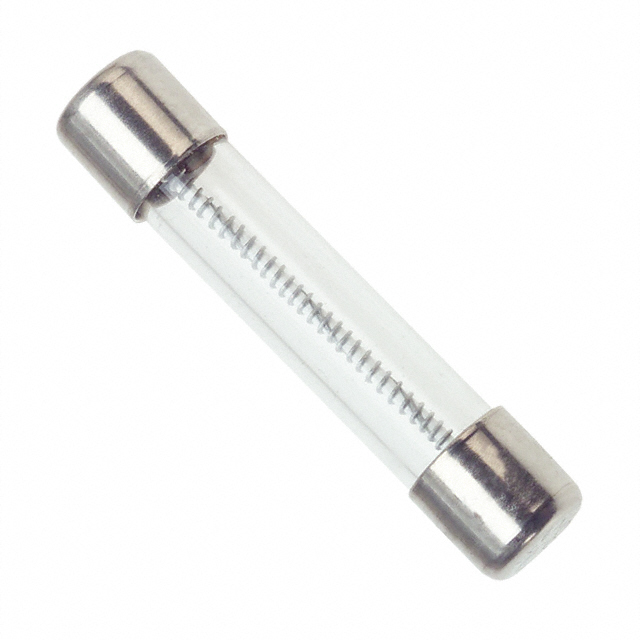

LITTELFUSE 0313020.MXP 管式保险丝, 313系列, 20 A, 32 V, 6.3mm x 32mm, 1/4" x 1-1/4", 300 A
A great alternative to a circuit breaker, this a miniature fuse from will protect your electronics. This device has a current rating of 20. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 0313020.MXP fuse has a cartridge termination style. This product comes packaged in bulk, so the parts will be stored loosely. This product is 31.75 mm long with a diameter of 6.35 mm. Its fuse is made from glass. The maximum AC voltage rating is 32 VAC.
触点电镀 Nickel
额定电压DC 32.0 V
额定电压AC 32 V
额定电流 20 A
电阻 0.0022 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 32 V
额定电压AC Max 32 V
引脚数 2
封装 3AB, 3AG, 1/4" x 1-1/4"
长度 31.75 mm
直径 6.35 mm
封装 3AB, 3AG, 1/4" x 1-1/4"
触点材质 Brass
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0313020.MXP Littelfuse 力特 | 当前型号 | 当前型号 |
0313020.HXP 力特 | 完全替代 | 0313020.MXP和0313020.HXP的区别 |
0313020.VXP 力特 | 类似代替 | 0313020.MXP和0313020.VXP的区别 |
313020 力特 | 类似代替 | 0313020.MXP和313020的区别 |
