03261.25HXP

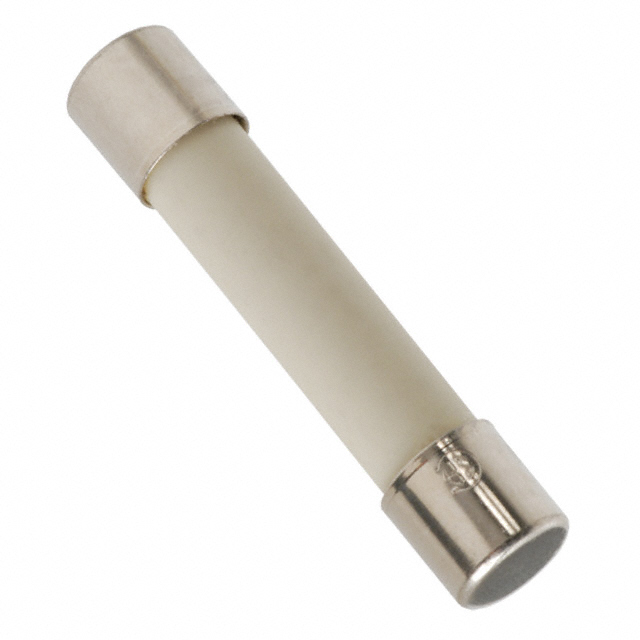

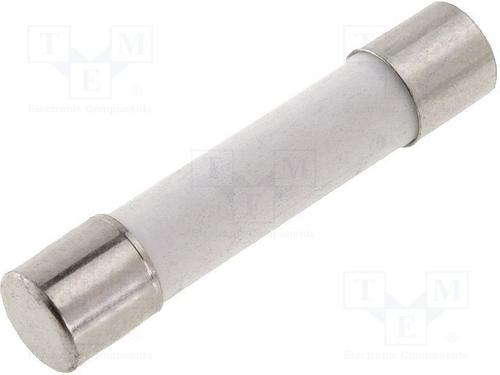

三百二十六分之三百二十五系列无铅3AB ， SLO- Blo®保险丝 325/326 Series Lead-Free 3AB, Slo-Blo® Fuse

Ceramic body construction permits higher interrupting ratings and voltage ratings. Ideal for applications where high current loads are expected. 250 Volts. 1⁄4" × 11⁄4".

.

*Approvals:** Listed by UL and Certified by CSA from 1⁄4 through 30 Amps. Recognized under the Components Program of UL from 12 through 30 Amps. **Electrical Characteristics. % of Ampere Rating/Opening Time:** 110% — 4 hrs. min., 135% — 1 hr. max., 200% — 5 Sec min.

贸泽:
Cartridge Fuses 250V 1.25A Slo-Blo

艾睿:
Be protected by adding a miniature 03261.25HXP fuse developed by Littelfuse. This device has a current rating of 1.25. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 03261.25HXP fuse has a cartridge termination style. This product comes packaged in bulk, so the parts will be stored loosely. This product is 31.75 mm long with a diameter of 6.35 mm. Its fuse is made from ceramic. The maximum AC voltage rating is 250 VAC.

Allied Electronics:
Fuse; Cylinder; Slow Blow; 1.25A; Sz 3AG; Supplemental; Dims 0.25x1.25"; Ceramic; 250VAC

Chip1Stop:
Fuse Miniature Slow Blow Acting 1.25A 250V Holder Cartridge 6.3 X 32mm Ceramic Bulk

TME:
Fuse: fuse; time-lag; ceramic; 1.25A; 250VAC; 6,3x32mm

Verical:
Fuse Miniature Slow Blow Acting 1.25A 250V Holder Cartridge 6.3 X 32mm Ceramic Bulk CE/CSA/KC/PSE/UL/cULus

Newark:
# LITTELFUSE  03261.25HXP  Fuse, Cartridge, Slo-Blo 326 Series, 1.25 A, 250 V, 6.3mm x 32mm, 1/4" x 1-1/4", 100 A
