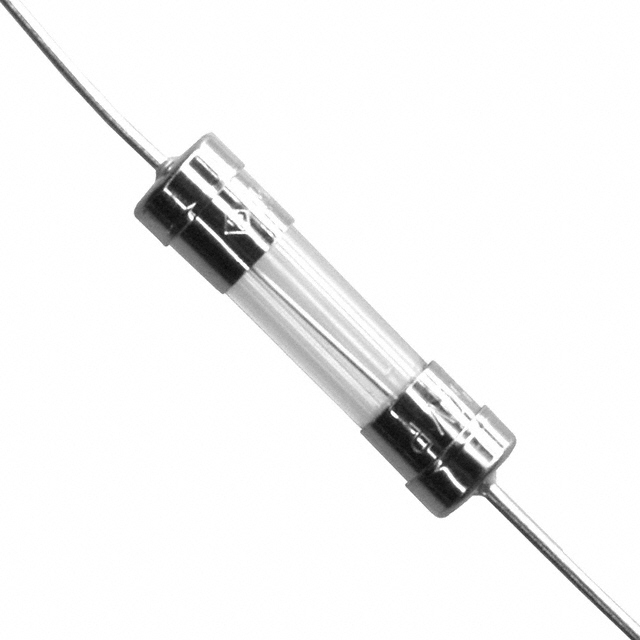

217系列, 5 ×20毫米,快熔保险丝 217 Series, 5 x 20 mm, Fast-acting Fuse
2A 250V AC DC Fuse Cartridge, Glass Through Hole 5mm x 20mm Axial
得捷:
FUSE GLASS 2A 250VAC 5X20MM
立创商城:
2A 250V
贸泽:
Cartridge Fuses 250 V 2A 5x20mm Fast Acting
艾睿:
Be protected by adding a miniature 0217002.MXEP fuse developed by Littelfuse. Its maximum power dissipation is 1.6Typ W. This device has a maximum power dissipation of 1.6Typ W. This device has a current rating of 2. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 0217002.MXEP fuse has an axial termination style. This product comes packaged in bulk, so the parts will be stored loosely. Its fuse is made from glass. This product is 22.5Max mm long with a diameter of 5.8Max mm. The maximum AC voltage rating is 250 VAC.
Chip1Stop:
Fuse Miniature Fast Acting 2A 250V Axial 5 X 20mm Glass Bulk
Verical:
Fuse Miniature Fast Acting 2A 250V Axial 5 X 20mm Glass Bulk CCC/CE/CSA/KC/PSE/SEMKO/VDE
Newark:
# LITTELFUSE 0217002.MXEP Fuse, Cartridge, 217 Series, 2 A, 250 V, 5mm x 20mm, 0.2" x 0.79", 35 A
Win Source:
FUSE GLASS 2A 250VAC 5X20MM / 2 A 250 V AC DC Fuse Cartridge, Glass Through Hole 5mm x 20mm Axial
额定电压DC 250 V
额定电压AC 250 V
额定电流 2 A
耗散功率 1.6 W
电阻 0.042 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 1.6 W
额定电压 250 V
额定电压AC Max 250 V
安装方式 Through Hole
引脚数 2
封装 5mm x 20mm Axial
长度 22.5 mm
直径 5.00 mm
脚长度 40 mm
封装 5mm x 20mm Axial
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
0217002.MXEP Littelfuse 力特 | 当前型号 | 当前型号 |
02173.15MXEP 力特 | 类似代替 | 0217002.MXEP和02173.15MXEP的区别 |
0217001.MXEP 力特 | 类似代替 | 0217002.MXEP和0217001.MXEP的区别 |
