0229.250MXP

0229.250MXP图片1
0229.250MXP图片2
0229.250MXP图片3
0229.250MXP图片4
0229.250MXP图片5
0229.250MXP图片6
0229.250MXP图片7
0229.250MXP图片8
0229.250MXP概述

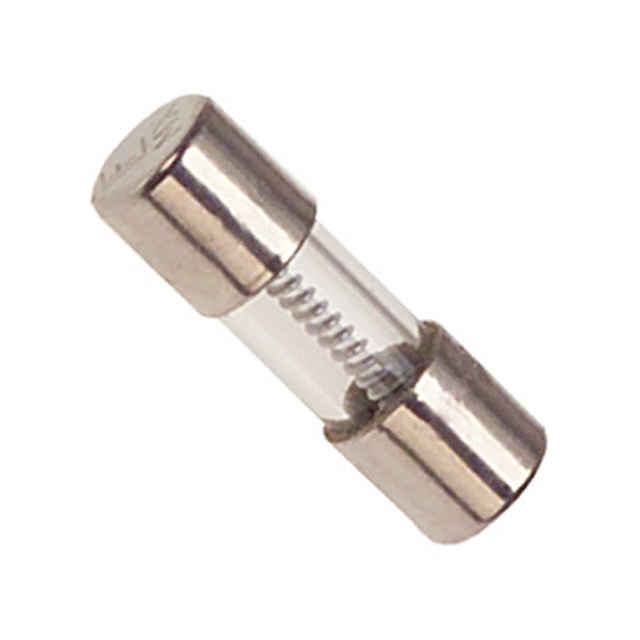

二百三十分之二百二十九系列无铅2AG , SLO- Blo®保险丝和指示SLO- Blo®保险丝 229/230 Series Lead-Free 2AG, Slo-Blo® Fuse and Indicating Slo-Blo® Fuse

A great alternative to a circuit breaker, this a subminiature fuse from will protect your electronics. This device has a current rating of 0.25. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 0229.250MXP fuse has a cartridge termination style. This product comes packaged in bulk, so the parts will be stored loosely. The maximum AC voltage rating is 250 VAC. This product is 14.48 mm long with a diameter of 4.5 mm. Its fuse is made from glass.

0229.250MXP中文资料参数规格
技术参数

额定电压DC 250 V

额定电压AC 250 V

额定电流 0.25 A

电阻 2.41 Ω

工作温度Max 125 ℃

工作温度Min -55 ℃

额定电压 250 V

额定电压AC Max 250 V

封装参数

引脚数 2

封装 2AG, 5mm x 15mm

外形尺寸

长度 14.48 mm

直径 4.50 mm

封装 2AG, 5mm x 15mm

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

数据手册

在线购买0229.250MXP
型号: 0229.250MXP
描述:二百三十分之二百二十九系列无铅2AG , SLO- Blo®保险丝和指示SLO- Blo®保险丝 229/230 Series Lead-Free 2AG, Slo-Blo® Fuse and Indicating Slo-Blo® Fuse
替代型号0229.250MXP
型号/品牌 代替类型 替代型号对比

0229.250MXP

Littelfuse 力特

当前型号

当前型号

0229.250HXP

力特

类似代替

0229.250MXP和0229.250HXP的区别
