225分之224系列无铅2AG ，快熔型 224/225 Series Lead-Free 2AG, Fast-Acting

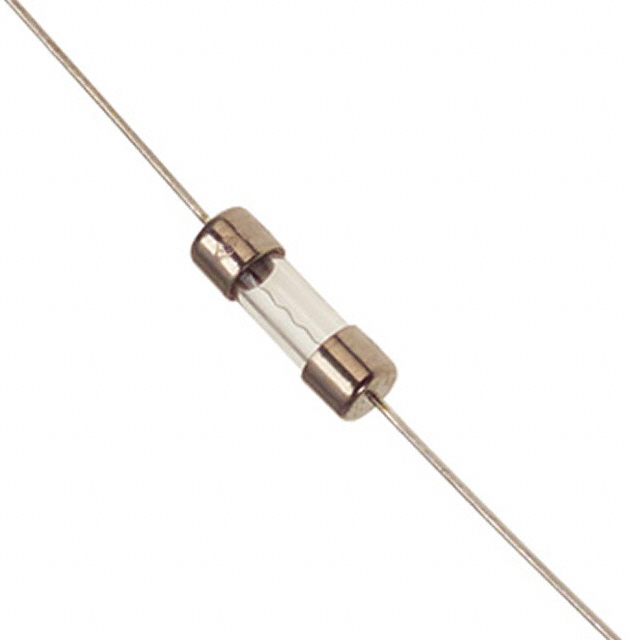

Be protected by adding a subminiature fuse developed by . This device has a current rating of 1. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 0224001.MXP fuse has an axial termination style. This product comes packaged in bulk, so the parts will be stored loosely. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 125 VDC. Its fuse is made from glass. This product is 14.48 mm long with a diameter of 4.7 mm.
额定电压DC 125 V
额定电压AC 250 V
额定电流 1 A
电阻 0.102 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 250 V
额定电压DC Max 125 V
额定电压AC Max 250 V
安装方式 Through Hole
引脚数 2
封装 2AG, 5mm x 15mm Axial
长度 14.48 mm
直径 4.70 mm
封装 2AG, 5mm x 15mm Axial
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0224001.MXP Littelfuse 力特 | 当前型号 | 当前型号 |
0224001.HXP 力特 | 完全替代 | 0224001.MXP和0224001.HXP的区别 |
0225001.HXP 力特 | 类似代替 | 0224001.MXP和0225001.HXP的区别 |
0225001.MXP 力特 | 类似代替 | 0224001.MXP和0225001.MXP的区别 |
