_超微型熔丝架### 表面安装技术表面安装熔丝适用于低电压应用,可大大节省空间(和时间)。 FF 类型最适用于保护高值硅 IC,例如,报警系统、音频/视频设备、计算机板、便携式电话、电源和医疗仪器等等

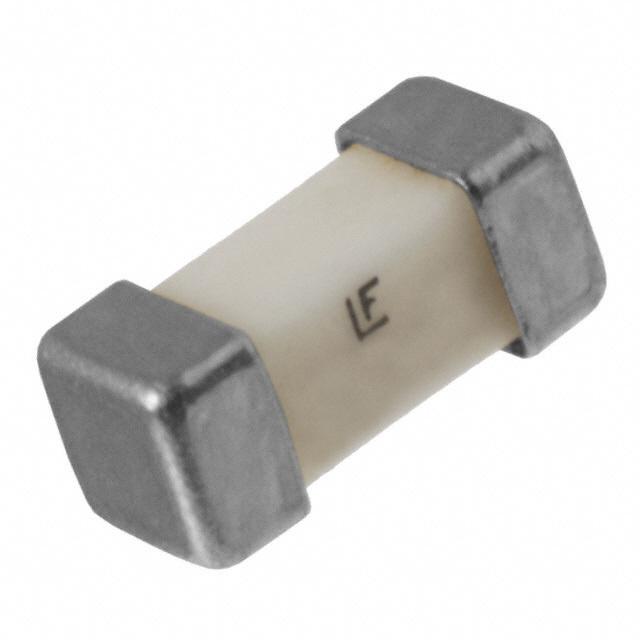

452 系列 NANO2 表面安装熔丝
Littelfuse 452 系列 NANO2 表面安装熔丝具有增强的浪涌耐受特性,有助于解决容纳浪涌电流引起的讨厌的开路问题,浪涌电流通常会导致快熔式熔丝开路。 452 系列 NANO2 表面安装熔丝适合广泛的应用。
延时器
小尺寸
低温降额
### 认可
CSA, UL
欧时:

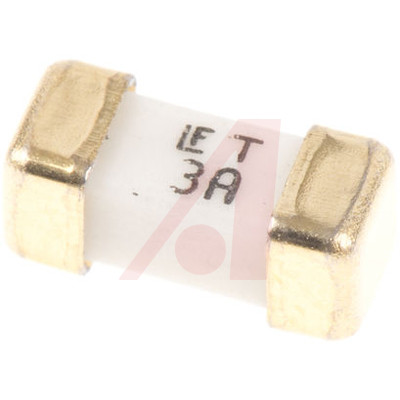

Littelfuse 3A电流 T熔度 不可复位表面固定熔断器 0452003.NRL, 6.1 x 2.69 x 2.69mm, 125V ac
得捷:
FUSE BRD MNT 3A 125VAC/VDC 2SMD
贸泽:
Surface Mount Fuses 125V 3A SB NANO2 W/Au CAPS
e络盟:
表面安装保险丝, 3 A, NANO2系列, 125 VAC, 32 VDC, 延迟, SMD
艾睿:
Be protected by adding a chip 0452003.NRL fuse developed by Littelfuse. This device has a current rating of 3. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 0452003.NRL fuse has a solder pad termination style. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. The maximum AC voltage rating is 125 VAC and the maximum DC voltage rating is 125 VDC. This product is 6.1 mm long, 2.69 mm tall and 2.69 mm deep. Its fuse is made from ceramic.
Allied Electronics:
3A T Non-Resettable Surface Mount Fuse, 125 V ac
TME:
Fuse: fuse; time-lag; ceramic; 3A; 125VAC; 125VDC; 6,1x2,7x2,7mm
Verical:
Fuse Chip Slow Blow Acting 3A 125V SMD Solder Pad 2410 Ceramic T/R CSA/PSE/UL
Newark:
# LITTELFUSE 0452003.NRL FUSE, ANTISURGE, SMD, 3A
额定电压DC 32 V
额定电压AC 125 V
额定电流 3 A
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 125 VAC
额定电压DC Max 125 V
额定电压AC Max 125 V
安装方式 Surface Mount
引脚数 2
封装 SMD-2
长度 6.1 mm
宽度 2.69 mm
高度 2.69 mm
封装 SMD-2
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Automation & Process Control, Safety, Wireless, 自动化与过程控制, 无线, 电源管理, Computers & Computer Peripherals, Power Management, 通信与网络, 消费电子产品, Portable Devices, Consumer Electronics, 工业, 安全, Industrial, Communications & Networking, 便携式器材, HVAC, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
0452003.NRL Littelfuse 力特 | 当前型号 | 当前型号 |
0452003.MRL 力特 | 类似代替 | 0452003.NRL和0452003.MRL的区别 |
0157003.DRT 力特 | 类似代替 | 0452003.NRL和0157003.DRT的区别 |
TR1/6125TD3-R 伊顿巴斯曼 | 功能相似 | 0452003.NRL和TR1/6125TD3-R的区别 |
