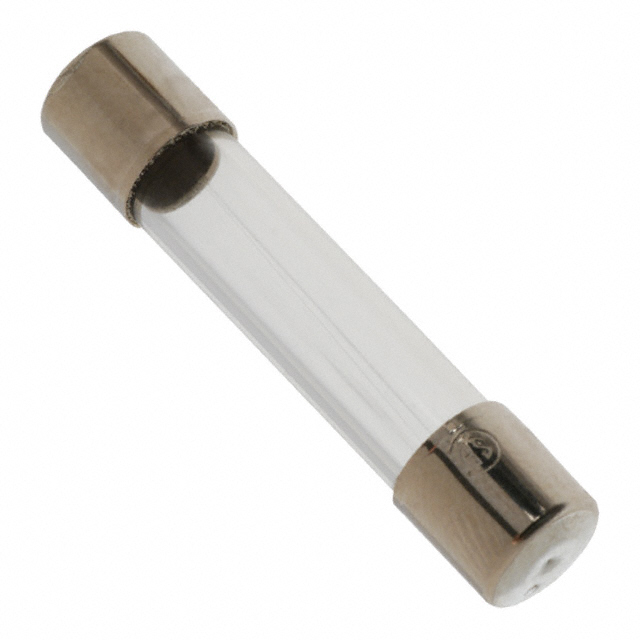

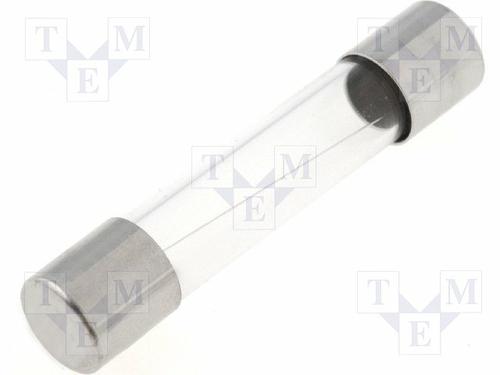

318分之312系列无铅3AG ，快熔保险丝 312/318 Series Lead-Free 3AG, Fast-Acting Fuse
Be protected by adding a miniature fuse developed by . This device has a current rating of 1.5. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 031201.5MXP fuse has a cartridge termination style. This product comes packaged in bulk, so the parts will be stored loosely. This product is 31.75 mm long with a diameter of 6.35 mm. The maximum AC voltage rating is 250 VAC. Its fuse is made from glass.
触点电镀 Nickel
额定电压DC 250 V
额定电压AC 250 V
额定电流 1.5 A
电阻 0.103 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 250 V
额定电压AC Max 250 V
引脚数 2
封装 3AB, 3AG, 1/4" x 1-1/4"
长度 31.75 mm
直径 6.35 mm
封装 3AB, 3AG, 1/4" x 1-1/4"
触点材质 Brass
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
031201.5MXP Littelfuse 力特 | 当前型号 | 当前型号 |
031201.5VXP 力特 | 完全替代 | 031201.5MXP和031201.5VXP的区别 |
31201.5P 力特 | 完全替代 | 031201.5MXP和31201.5P的区别 |
031201.5HXP 力特 | 类似代替 | 031201.5MXP和031201.5HXP的区别 |
