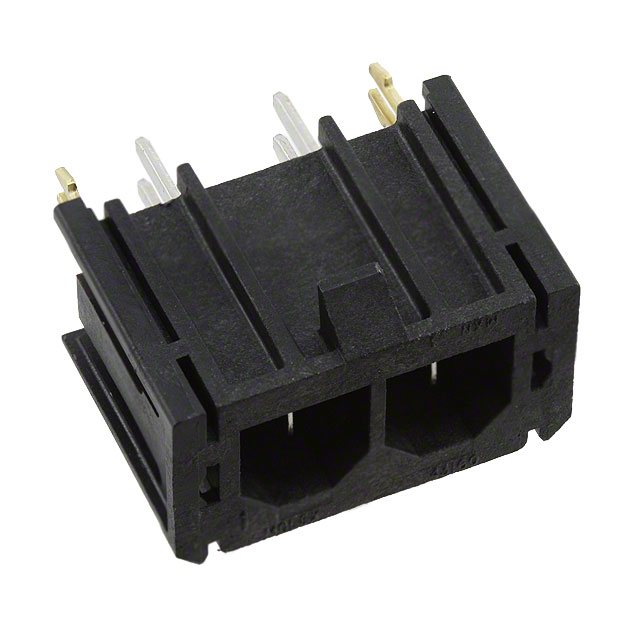

SABRE头，组件垂直， 2-6和8 CIR 。 0.125 / （ 3.18 ）× 0.020 / （ 0.51 ） SABRE HEADER, ASSY VERTICAL, 2-6 & 8 CIR. .125/3.18X .020/0.51
Are you looking for a solution to connecting a circuit to a power supply? Then use this power connector from for a secure connection! This HDR connector"s 2 contacts that are made out of brass and plated with tin over copper. Its pitch is 7.49 mm. It has a header type gender. It has a straight body orientation. It has a maximum voltage rating of 600 V. This connector has a single port. This device has a maximum current rating of 18 A/contact. 0431604302 is housed in nylon 4/6. The item will be shipped in tray orientation. Its 4 terminals use the solder termination method. This power connector has an operating temperature range of -40 °C to 75 °C. This product is 21.08 mm long, 14.76 mm tall and 13.38 mm deep.
