0431602102

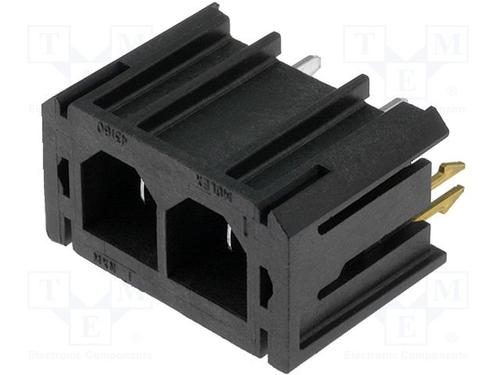

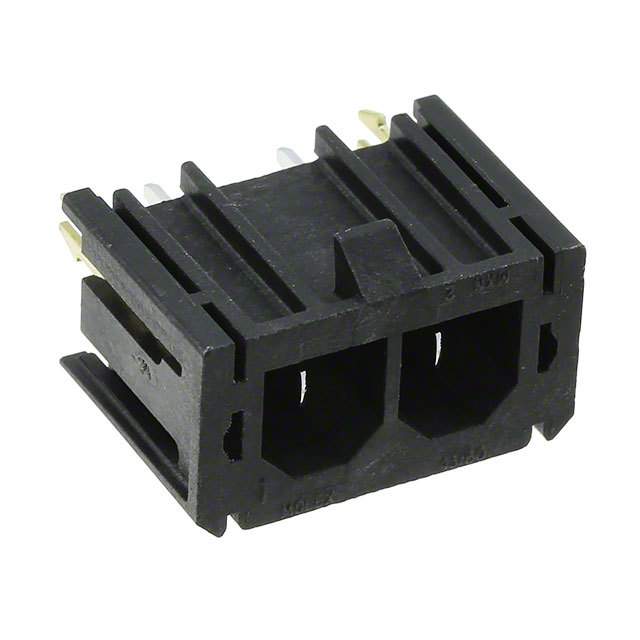

Conn Power HDR 2POS 7.49mm Solder ST Thru-Hole 4 Terminal 1Port Sabre™ Tray

2 位置 接头，公型刀片 焊接 0.295"（7.50mm） 通孔

得捷:
CONN HDR 2POS 7.50MM PCB SLDR

立创商城:
0431602102

艾睿:
This 0431602102 power connector from Molex comes in a variety of types to support AC or DC power entry modules. This HDR connector&s;s 2 contacts that are made out of brass and plated with tin over copper. It has a straight body orientation. This connector has a single port. It has a maximum voltage rating of 600 V. Its pitch is 7.49 mm. It has a header type gender. 0431602102 is housed in nylon 4/6. This device has a maximum current rating of 18 A/contact. This component will be shipped in tray format. This product is 21.08 mm long, 14.76 mm tall and 13.38 mm deep. Its 4 terminals use the solder termination method. This power connector has an operating temperature range of -40 °C to 75 °C.

安富利:
Conn Wire to Board HDR 2 POS 7.49mm Solder ST Thru-Hole Tray

Chip1Stop:
Conn Wire to Board HDR 2 POS 7.49mm Solder ST Thru-Hole Tray

Verical:
Conn Wire to Board HDR 2 POS 7.49mm Solder ST Top Entry Thru-Hole Sabre™ Tray
