0431602104

Conn Power HDR 4POS 7.49mm Solder ST Thru-Hole 8 Terminal 1Port Sabre Tray

位置 接头，公型刀片 焊接 0.295"（7.50mm） 通孔

得捷:
CONN HDR 4POS 7.50MM PCB SLDR

立创商城:
0431602104

艾睿:

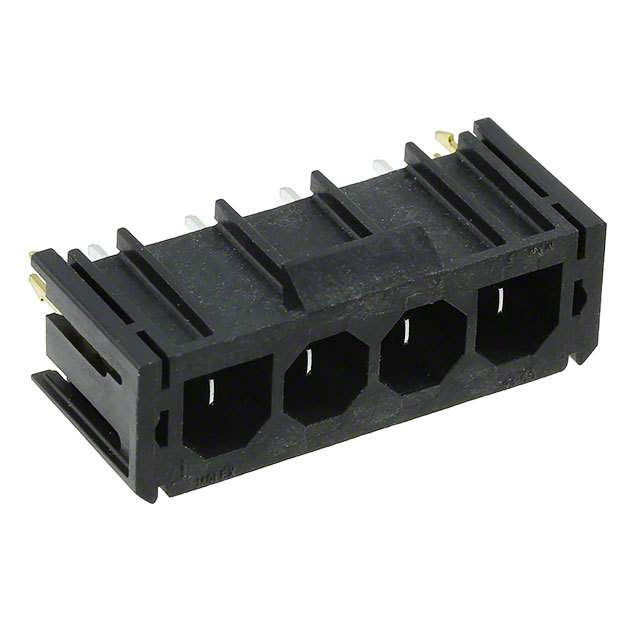

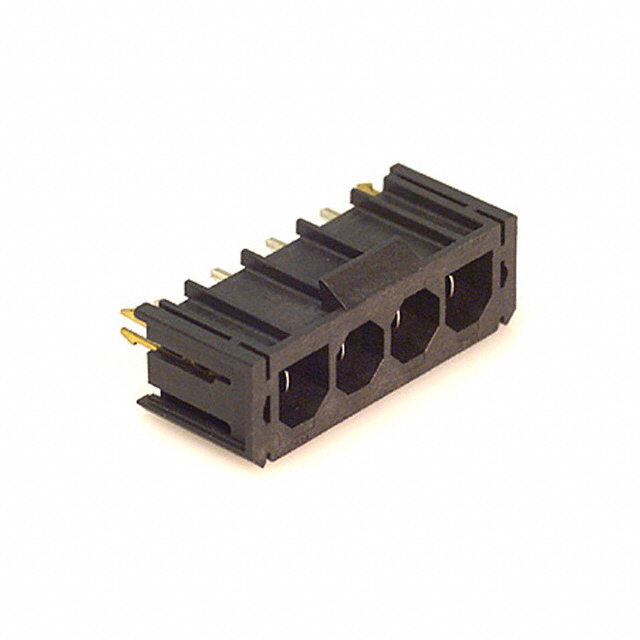

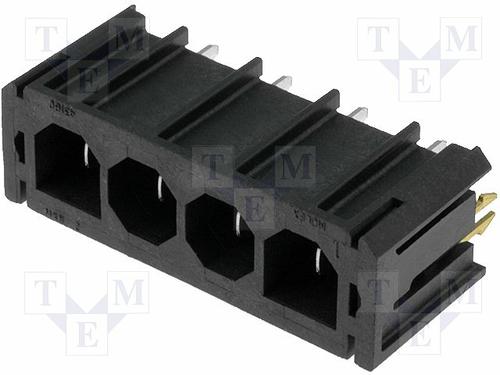

This robust 0431602104 power connector from Molex easily retains normal operation in harsh and stressful environments. This HDR connector&s;s 4 contacts that are made out of brass and plated with tin over copper. It has a header type gender. It has a straight body orientation. It has a maximum voltage rating of 600 V. Its pitch is 7.49 mm. This connector has a single port. This device has a maximum current rating of 18 A/contact. 0431602104 is housed in nylon 4/6. The component will be shipped in tray format. This power connector has a minimum operating temperature of -40 °C and a maximum of 75 °C. Its 8 terminals use the solder termination method. This product is 36.07 mm long, 14.76 mm tall and 13.38 mm deep.

安富利:
Conn Wire to Board HDR 4 POS 7.49mm Solder ST Thru-Hole Tray

Chip1Stop:
Conn Wire to Board HDR 4 POS 7.49mm Solder ST Thru-Hole Tray

Verical:
Conn Power HDR 4 POS 7.49mm Solder ST Thru-Hole 8 Terminal 1 Port Sabre™ Bag
