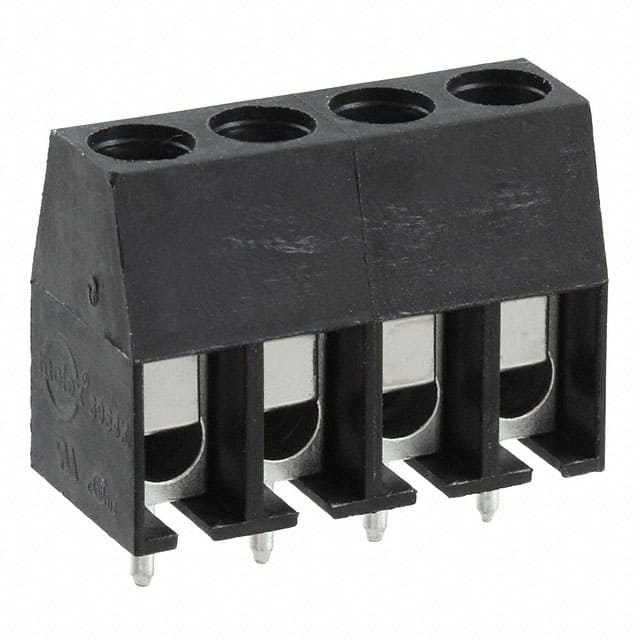

5.00毫米（ .197 “ ）间距欧瑞士达™垂直固定式PCB接线端子，带螺钉压钳， 4电路 5.00mm .197" Pitch Eurostyle™ Vertical Fixed Mount PCB Terminal Block, with Screw Pressure Clamp, 4 Circuits
4 Position Wire to Board Terminal Block Horizontal with Board 0.197" 5.00mm Through Hole
得捷:
TERM BLK 4POS SIDE ENTRY 5MM PCB
艾睿:
Connect test equipment together with other components by using this eurostyle block 0395430004 PCB terminal block from Molex. It has a maximum voltage rating of 300 V. It has a straight body orientation. Its pitch is 5 mm. This is a 1-row connector. This device has a maximum current rating of 10 A/contact. 0395430004 is housed in polyamide 6/6. This quick disconnect terminal has an operating temperature of -40 to 105 °C. Its wire is 14-24 AWG. This product is 20 mm long, 14.5 mm tall and 9.5 mm deep. It uses the solder termination method.
