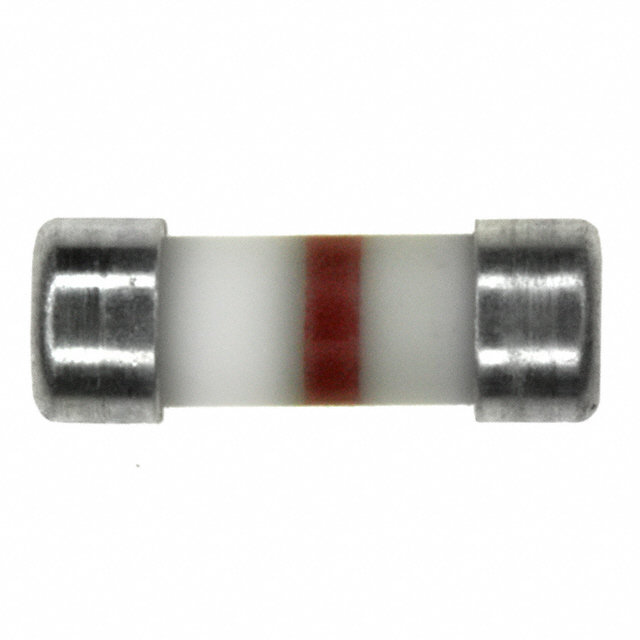

障FUSE表面贴装 BARRIER FUSE SURFACE MOUNT
Protect your electronic equipment from overcurrent with this fuse from . This device has a current rating of 0.2. This fuse has a minimum operating temperature of -40 °C and a maximum of 125 °C. It has 2 terminals. The 0242.200UR fuse has a cartridge termination style. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 250 VDC. This product is 8.4 mm long with a diameter of 3.02 mm.
额定电压DC 250 V
额定电压AC 250 V
额定电流 0.2 A
电阻 2.68 Ω
工作温度Max 125 ℃
工作温度Min -40 ℃
额定电压 250 V
额定电压DC Max 250 V
额定电压AC Max 250 V
安装方式 Surface Mount
引脚数 2
封装 SMD
长度 8.4 mm
宽度 3.02 mm
高度 3.02 mm
直径 3.02 mm
封装 SMD
颜色 Brown
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
