0395430202概述

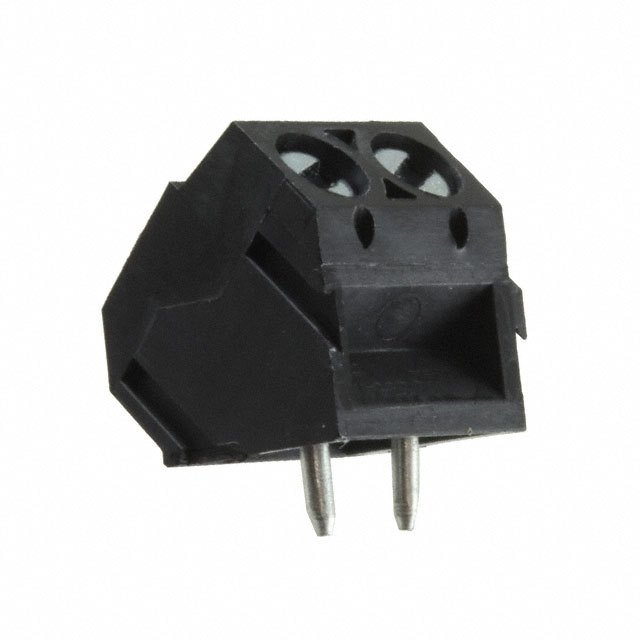

5.00毫米（ .197 “ ）间距欧瑞士达™ 45 °导线入口固定式PCB接线端子，带螺钉压钳， 2个电路 5.00mm .197" Pitch Eurostyle™ 45° Wire Entry Fixed Mount PCB Terminal Block, with Screw Pressure Clamp, 2 Circuits
Create a bridge between two sides of a circuit by implementing this eurostyle block PCB terminal block from . It has a maximum voltage rating of 300 V. This is a 1-row connector. Its pitch is 5 mm. This device has a maximum current rating of 10 A/contact. 0395430202 is housed in polyamide 6/6. This product is 10.6 mm long, 11.8 mm tall and 11 mm deep. It uses the solder termination method. Its wire is 14-24 AWG. This quick disconnect terminal has an operating temperature of -40 to 105 °C.
