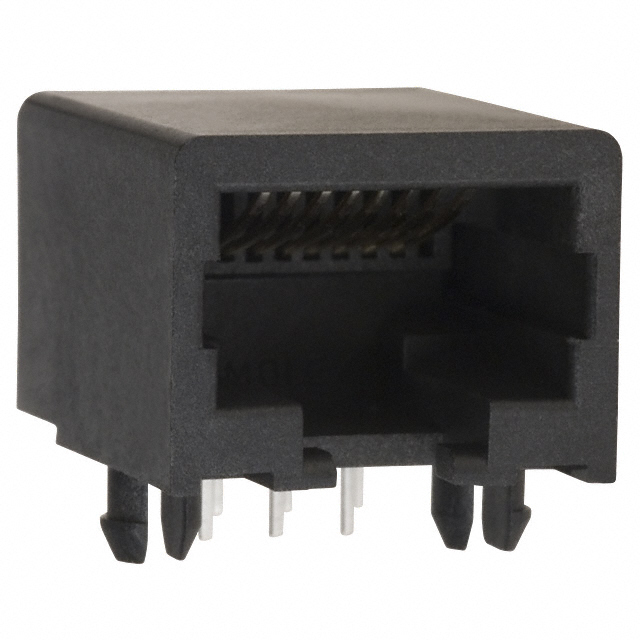

模块化插座,直角,低调, 8/8 Modular Jack, Right Angle, Low Profile, 8/8
You will never drop a call again with this rj-45 telephone and telecom connector from . This F connector"s 8 contacts that are made out of phosphor bronze and plated with gold over nickel. This connector has a single port. Its pitch is 2.54 mm. It has a right angle body orientation. It has a maximum voltage rating of 125 V. It has a female type gender. This device has a maximum current rating of 1.5 A/contact. This component comes in tray packaging, useful for fast picking and placing of your parts. It uses the solder termination method. 0432028104 is housed in black polyamide. This part has an operating temperature of -40 to 85 °C. This product is 15.24 mm long, 11.58 mm tall and 18.03 mm deep.
触点数 8
绝缘电阻 500 MΩ
排数 1
拔插次数 500
额定电流Max 1.5A/触头
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 150 VAC
接触电阻Max 10 mΩ
安装方式 Through Hole
封装 贴片
长度 15.24 mm
宽度 18.03 mm
高度 11.58 mm
封装 贴片
外壳颜色 Black
触点材质 Phosphor Bronze
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
0432028104 Molex 莫仕 | 当前型号 | 当前型号 |
1116504-2 泰科 | 类似代替 | 0432028104和1116504-2的区别 |
5555167-4 泰科 | 类似代替 | 0432028104和5555167-4的区别 |
FRJAE438 安费诺 | 类似代替 | 0432028104和FRJAE438的区别 |
