0440500003

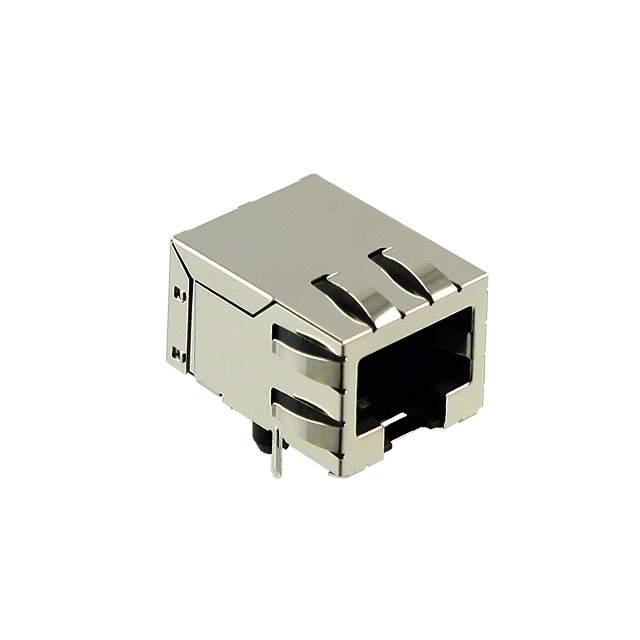

模块化插座，直角，低调， 8/8 Modular Jack, Right Angle, Low Profile, 8/8

模块化 - 插孔 8p8c（RJ45，以太网） 90°角（直角） 屏蔽式，EMI指 Cat5

得捷:
CONN MOD JACK 8P8C R/A SHIELDED

艾睿:
Make a strong and durable connection with this rj-45 0440500003 telephone and telecom connector from Molex. This F connector&s;s 8 contacts that are made out of phosphor bronze and plated with gold over nickel. This connector has a single port. It has a female type gender. It has a maximum voltage rating of 150 VAC. Its pitch is 2.54 mm. It has a right angle body orientation. This device has a maximum current rating of 1.5 A/contact. The item will be shipped in tray orientation. 0440500003 is housed in black nylon. This part has an operating temperature of -40 to 80 °C. This product is 15.8 mm long, 13.06 mm tall and 21.06 mm deep. It uses the solder termination method.

安富利:
Conn RJ-45 F 8 POS 2.54mm Solder RA Thru-Hole 8 Terminal 1 Port Tray Cat 5

Chip1Stop:
Conn RJ-45 F 8 POS 2.54mm Solder RA Thru-Hole 8 Terminal 1 Port Tray Cat 5

Verical:
Conn RJ-45 F 8 POS 1.27mm Solder RA Thru-Hole 8 Terminal 1 Port Modular Jack 8/8, RJ45 Cat 5 Tray
