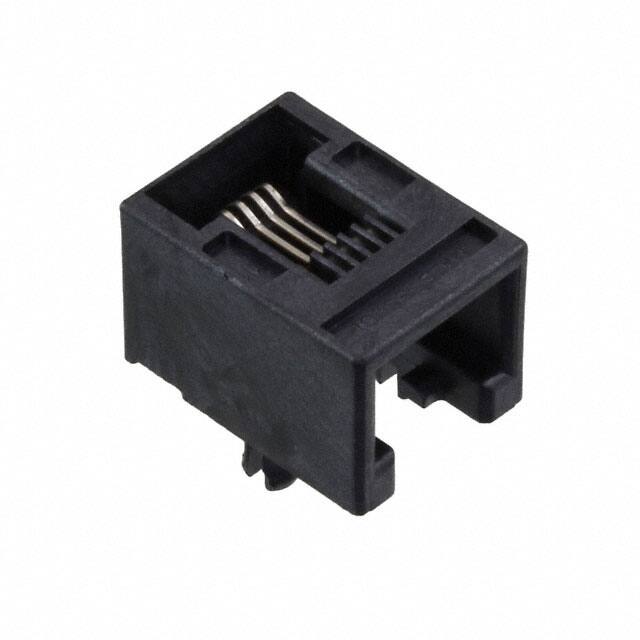

0955012641

模块化插座，薄型，槽洞， 6位，4个装 Modular Jacks, Low Profile, Trough Hole, 6 Positions, 4 loaded

模块化 - 插孔 6p4c（RJ11，RJ14） 90°角（直角） 无屏蔽 Cat3

得捷:
CONN MOD JACK 6P4C R/A UNSHLD

贸泽:
Modular Connectors / Ethernet Connectors MDJCK 6/4 RA LOPRO

艾睿:
This rj-11 0955012641 telephone and telecom connector from Molex is perfect for high-speed signals. This RCP connector&s;s 6 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. It has a receptacle type gender. It has a right angle body orientation. It has a maximum voltage rating of 125 VDC. This connector has a single port. This device has a maximum current rating of 1.5 A/contact. This component will be shipped in tray format. This part has an operating temperature of -40 to 85 °C. This product is 13.2 mm long, 11.5 mm tall and 18.1 mm deep. It uses the solder termination method. 0955012641 is housed in black liquid crystal polymer.

安富利:
Conn RJ-11 RCP 6 POS 2.54mm Solder RA Thru-Hole 4 Terminal 1 Port Tray Cat 3

Chip1Stop:
Conn RJ-11 RCP 6 POS 2.54mm Solder RA Thru-Hole 4 Terminal 1 Port Tray Cat 3

Verical:
Conn RJ-11 RCP 6 POS 2.54mm Solder RA Thru-Hole 4 Terminal 1 Port Cat 3 Tray
