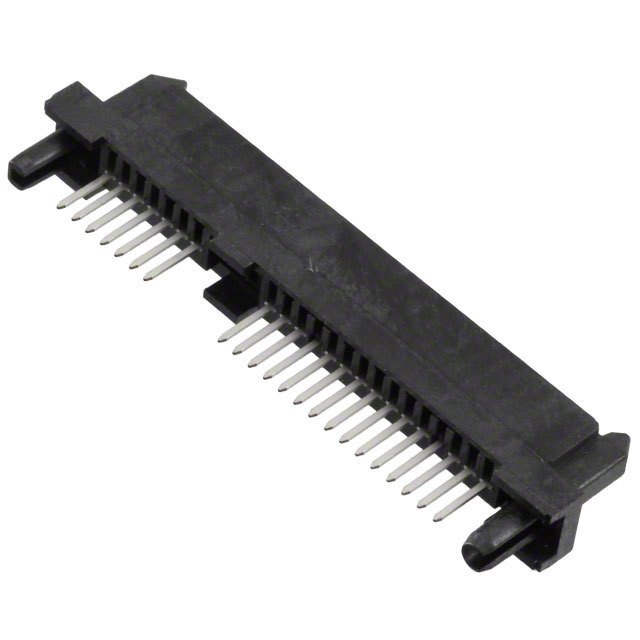

1.27毫米（ .050 ）间距串行ATA背板插座，通孔，垂直， SIL ，标准高， 0.76μm （ 30μ ），金（Au ）的选择性， 22电路，无铅 1.27mm .050 Pitch Serial ATA Backplane Receptacle, Through Hole, Vertical, SIL, Standard Height, 0.76μm 30μ Gold Au Selective, 22 Circuits, Leadfree
Devices such as printers and scanners that run the Small Computer System Interface standards and protocols will require this sata SCSI connector from 0877791001 in order to interface with each other. This RCP connector"s 15 power / 7signal contacts that are made out of copper alloy and plated with gold over nickel. It has a receptacle type gender. This connector has a single port. Its pitch is 1.27 mm. It has a straight body orientation. It has a maximum voltage rating of 30 V. 0877791001 is housed in liquid crystal polymer. This device has a maximum current rating of 1.5 A/contact. This component will be shipped in tray format. This product is 42.73 mm long, 9.85 mm tall and 5 mm deep. Its 22 terminals use the solder termination method. This SCSI connector has an operating temperature range of -40 °C to 105 °C.
