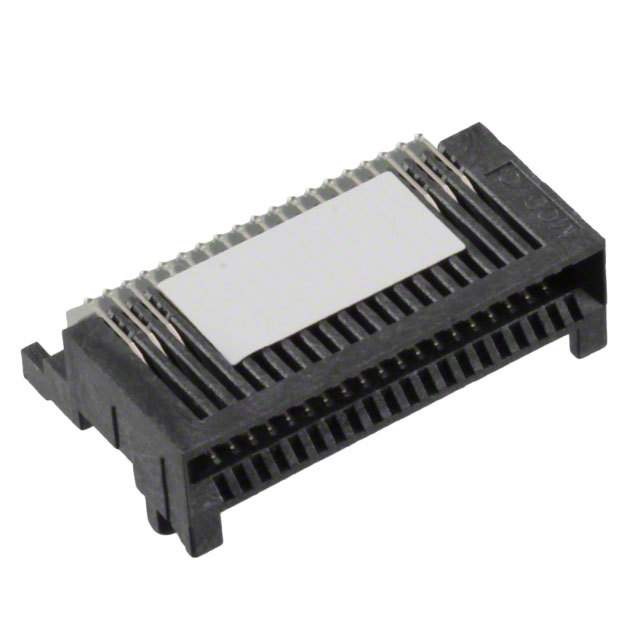

0.80毫米（ .031 ）间距，的iPass ™I / O SMT插座，直角，外部应用程序， 38电路， 0.76μm （ 30μ ），金（Au ） 0.80mm .031 Pitch, iPass™ I/O SMT Receptacle, Right Angle, External Application, 38 Circuit, 0.76μm 30μ Gold Au
Devices such as printers and scanners that run the Small Computer System Interface standards and protocols will require this SCSI connector from 0755860011 in order to interface with each other. This RCP connector"s 38 contacts that are made out of copper alloy and plated with gold over nickel. This connector has a single port. It has a right angle body orientation. It has a receptacle type gender. Its pitch is 0.8 mm. It has a maximum voltage rating of 30 VDC|30VAC. This device has a maximum current rating of 0.5 A/contact. 0755860011 is housed in thermoplastic. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Its 38 terminals use the solder termination method. This SCSI connector has an operating temperature range of -40 °C to 80 °C. This product is 18.2 mm long, 5.35 mm tall and 11.5 mm deep.
