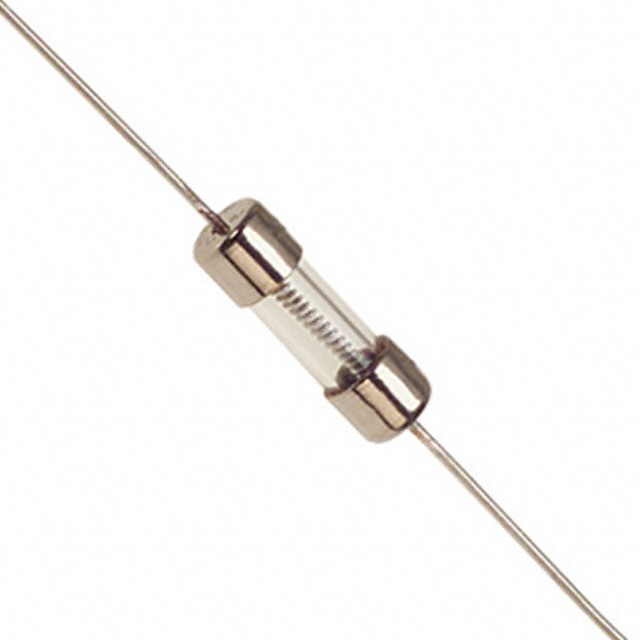

二百三十分之二百二十九系列无铅2AG ， SLO- Blo®保险丝和指示SLO- Blo®保险丝 229/230 Series Lead-Free 2AG, Slo-Blo® Fuse and Indicating Slo-Blo® Fuse
Be protected by adding a subminiature fuse developed by . This device has a current rating of 5. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 0230005.DRT1P fuse has an axial termination style. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 14.48 mm long with a diameter of 4.7 mm. The maximum AC voltage rating is 125 VAC. Its fuse is made from glass.
额定电压DC 125 V
额定电压AC 125 V
额定电流 5 A
电阻 0.0186 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 125 V
额定电压AC Max 125 V
安装方式 Through Hole
引脚数 2
封装 Non-Standard
长度 14.48 mm
直径 4.70 mm
封装 Non-Standard
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
