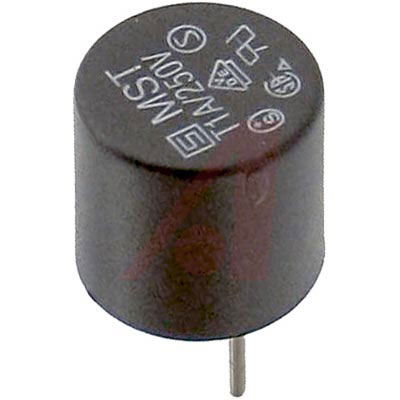

8.5 mm 250 V 1 A 延时 通孔 超小型保险丝
Microfuse 熔丝 - MSF 和 MST 系列
微型熔丝,用于焊接到印刷电路板或载体。
快熔式 MSF 或延时 MST 熔丝。 低断开容量。
额定电压: | 250 Vac
---|---
断开容量 | 35 A(快熔式 4 和 5 A: 10 x In 除外)
耐焊接热: | +260 °C/10 s,符合 IEC 68-2-20
工作温度: | -40°C 至 +85°C

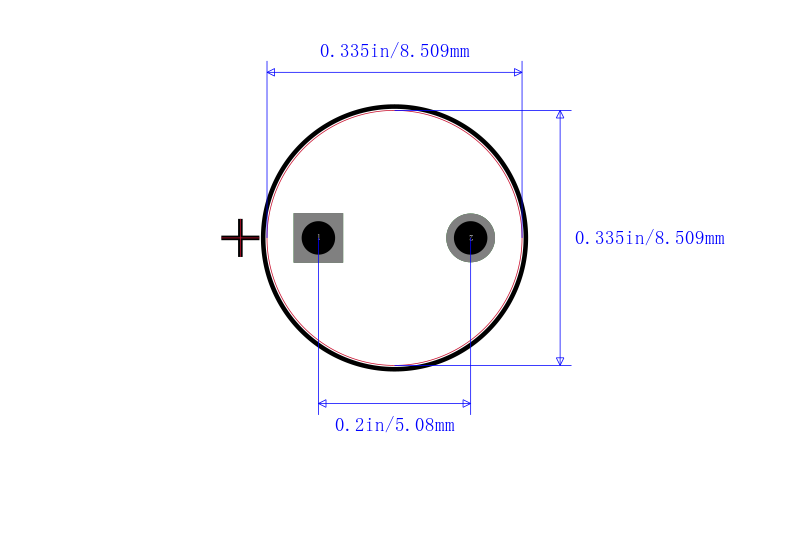

节距: | 5.08mm
### 标准
EN 60127, IEC 127-3//3, DIN-VDE 0820
得捷:

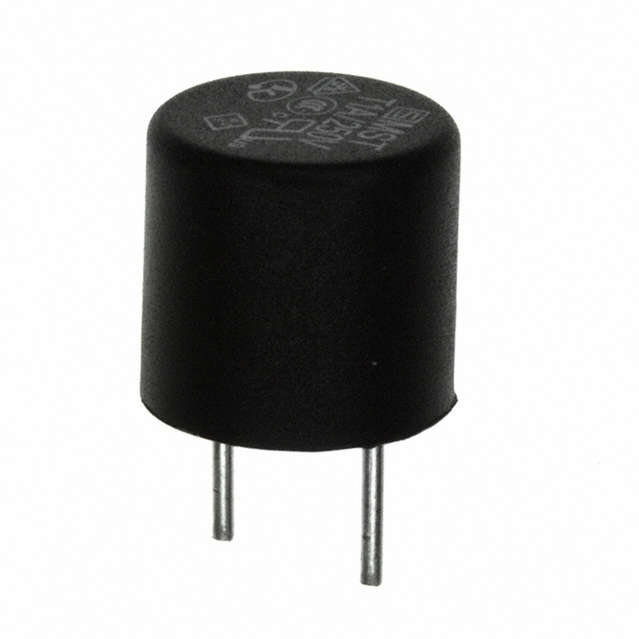

FUSE BOARD MNT 1A 250VAC 125VDC
欧时:

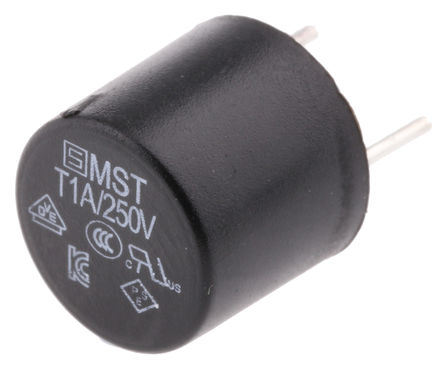

Schurter 1A 径向 带引线的 PCB 固定熔断器 0034.6615, T熔断速度, 250V ac, 8.5mm直径, 8.5mm高
贸泽:
带引线的保险丝(通孔型) MST 250 1A T 4.3
艾睿:
Be protected by adding a subminiature 0034.6615 fuse developed by Schurter. This device has a current rating of 1. This device has a maximum power dissipation of 0.5 W. Its maximum power dissipation is 0.5 W. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 0034.6615 fuse has a radial termination style. This product is 8.5 mm tall with a diameter of 8.5 mm. Its fuse is made from thermoplastic. The maximum AC voltage rating is 250 VAC.
Allied Electronics:
Fuse; Submin/Non-Resettable; Time Lag; 1A; Dims 8.5x8.5mm; Thermoplastic; Radial; PCB
安富利:
MST 250 FUSE 1A T
Chip1Stop:
Fuse Subminiature Slow Blow Acting 1A 250V Radial 8.5 X 8.5mm Thermoplastic
TME:

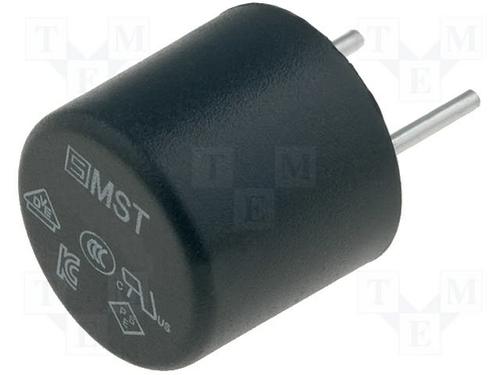

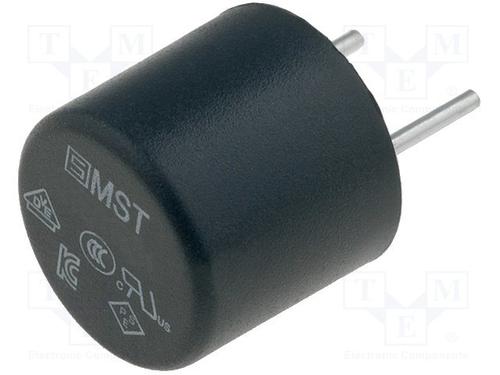

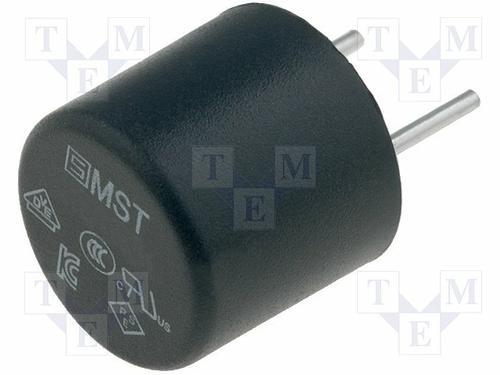

Fuse: fuse; time-lag; 1A; 250VAC; TR5; MST
Verical:
Fuse Subminiature Slow Blow Acting 1A 250V Radial 8.5 X 8.5mm Thermoplastic Box CCC/CSA/PSE/UL/VDE/cULus
Newark:
Fuse, PCB Leaded, 1 A, 250 VAC, MST 250 Series, 125 VDC, Time Delay, Radial Leaded
儒卓力:
**MST250 1A 250V SUBM SLOW **
MASTER:
Fuse - PCB Leaded - 1 A - 250 VAC - MST 250 Series - 125 VDC - Time Delay - Radial Leaded.
Online Components:
MST 250 FUSE 1A T
CDI:
MST 250 FUSE 1A T
Electro Sonic:
Fuse - PCB Leaded - 1 A - 250 VAC - MST 250 Series - 125 VDC - Time Delay ...
额定电压DC 125 V
额定电压AC 250 V
额定电流 1 A
耗散功率 0.5 W
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 0.5 W
额定电压 250 VAC
额定电压DC Max 63 V
额定电压AC Max 250 V
安装方式 Through Hole
引脚数 2
封装 径向引线
长度 8.5 mm
高度 8.5 mm
脚长度 4.3 mm
封装 径向引线
电源线长度 4.3 m
颜色 Black
材质 Plastic
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Box
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
HTS代码 8536100040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
0034.6615 Schurter | 当前型号 | 当前型号 |
0034.6619 Schurter | 类似代替 | 0034.6615和0034.6619的区别 |
0034.6616 Schurter | 类似代替 | 0034.6615和0034.6616的区别 |
