0034.6618

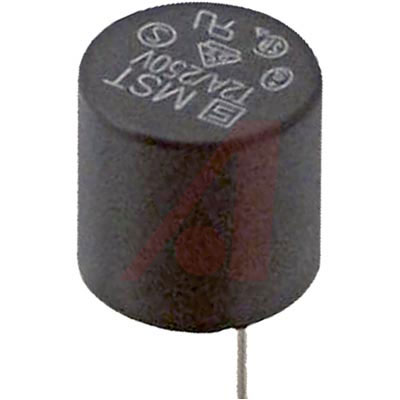

MST 250 系列 Ø8.5 mm 延时 250 VAC 2 A 非自恢复 次微型 保险丝

Microfuse 熔丝 - MSF 和 MST 系列

微型熔丝，用于焊接到印刷电路板或载体。

快熔式 MSF 或延时 MST 熔丝。 低断开容量。

### 标准

EN 60127, IEC 127-3//3, DIN-VDE 0820

### 印刷电路板线端

所有熔丝均为热塑聚酰胺主体

欧时:

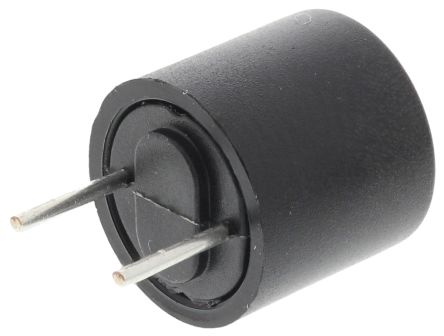

Schurter 2A 径向 带引线的 PCB 固定熔断器 0034.6618, T熔断速度, 250V ac, 8.5mm直径, 8.5mm高

得捷:
FUSE BOARD MNT 2A 250VAC 125VDC

e络盟:
SCHURTER  0034.6618  保险丝, 电路板安装, 2 A, 250 VAC, MST 250系列, 250 VDC, 延迟, 径向引线

艾睿:
A great alternative to a circuit breaker, this a subminiature 0034.6618 fuse from Schurter will protect your electronics. Its maximum power dissipation is 0.87 W. This device has a current rating of 2. This device has a maximum power dissipation of 0.87 W. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 0034.6618 fuse has a radial termination style. The maximum AC voltage rating is 250 VAC. Its fuse is made from thermoplastic. This product is 8.5 mm tall with a diameter of 8.5 mm.

Allied Electronics:
Fuse; Subminiature; Non Resettable; 2 A; 250 V; Temperature Resistant Plastic

安富利:
MST 250 FUSE 2A T

Chip1Stop:
Fuse Subminiature Slow Blow Acting 2A 250V Radial 8.5 X 8.5mm Thermoplastic Box CCC/CSA/PSE/UL/VDE/cULus

TME:
Fuse: fuse; time-lag; 2A; 250VAC; TR5; MST

Verical:
Fuse Subminiature Slow Blow Acting 2A 250V Radial 8.5 X 8.5mm Thermoplastic Box CCC/CSA/PSE/UL/VDE/cULus

Newark:
Fuse, PCB Leaded, 2 A, 250 VAC, MST 250 Series, 125 VDC, Time Delay, Radial Leaded

儒卓力:
**MST250 2A 250V SUBM SLOW **

MASTER:
Fuse - PCB Leaded - 2 A - 250 VAC - MST 250 Series - 250 VDC - Time Delay - Radial Leaded.

Online Components:
MST 250 FUSE 2A T

CDI:
MST 250 FUSE 2A T

Electro Sonic:
Fuse - PCB Leaded - 2 A - 250 VAC - MST 250 Series - 250 VDC - Time Delay ...
