Schurter FST 时滞 T 熔丝Schurter FST 熔丝是可靠的初级保护设备,应用非常广泛。 玻璃主体可快速识别事故,从而可快速轻松地更换。 Schurter 延时熔丝在避免故障跳闸时非常有用。IEC 标准熔丝。 低断开容量。 ### 熔丝,反浪涌 - 玻璃体

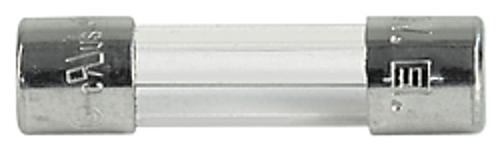

FST 时滞 T 熔丝
Schurter FST 熔丝是可靠的初级保护设备,应用非常广泛。 玻璃主体可快速识别事故,从而可快速轻松地更换。 Schurter 延时熔丝在避免故障跳闸时非常有用。
IEC 标准熔丝。
低断开容量。
欧时:
Schurter 保险管, 熔断速度 T, 100mA, 直径 5mm, 5 x 20mm, 250V ac
得捷:
FUSE GLASS 100MA 250VAC 5X20MM
艾睿:
Be protected by adding a miniature 0034.3107 fuse developed by Schurter. Its maximum power dissipation is 1.6 W. This device has a current rating of 0.1. This device has a maximum power dissipation of 1.6 W. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 0034.3107 fuse has a cartridge termination style. The maximum AC voltage rating is 250 VAC. This product is 20 mm long with a diameter of 5.2 mm. Its fuse is made from glass.
Allied Electronics:
Fuse; Cylinder; Time-Lag; 0.1 A; 250 VAC; 5x20mm; Glass; Cartridge
安富利:
FST 5X20 FUSE 100mA T
Chip1Stop:
Fuse Miniature Slow Blow Acting 0.1A 250V Holder Cartridge 5 X 20mm Glass
TME:
Fuse: fuse; time-lag; glass; 100mA; 250VAC; 5x20mm; FST
Verical:
Fuse Miniature Slow Blow Acting 0.1A 250V Holder Cartridge 5 X 20mm Glass
Newark:
FUSE, ANTISURGE, GLASS, 100MA
儒卓力:
**FST 0,1A SLOW 250V 5x20 Glass **
MASTER:
FST 5X20 FUSE 100mA T
Online Components:
FST 5X20 FUSE 100mA T
CDI:
FST 5X20 FUSE 100mA T
Electro Sonic:
FST 5X20 FUSE 100mA T
额定电压DC 250 V
额定电压AC 250 V
额定电流 100 mA
耗散功率 1.6 W
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 250 VAC
引脚数 2
封装 5mm x 20mm
长度 20 mm
宽度 5 mm
直径 5.20 mm
封装 5mm x 20mm
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
制造应用 Safety
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2017/07/07
ECCN代码 EAR99
HTS代码 8536100040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
0034.3107 Schurter | 当前型号 | 当前型号 |
0218.100MXP 力特 | 完全替代 | 0034.3107和0218.100MXP的区别 |
34.3107 Schurter | 类似代替 | 0034.3107和34.3107的区别 |
S506 100MA 库柏 | 类似代替 | 0034.3107和S506 100MA的区别 |
