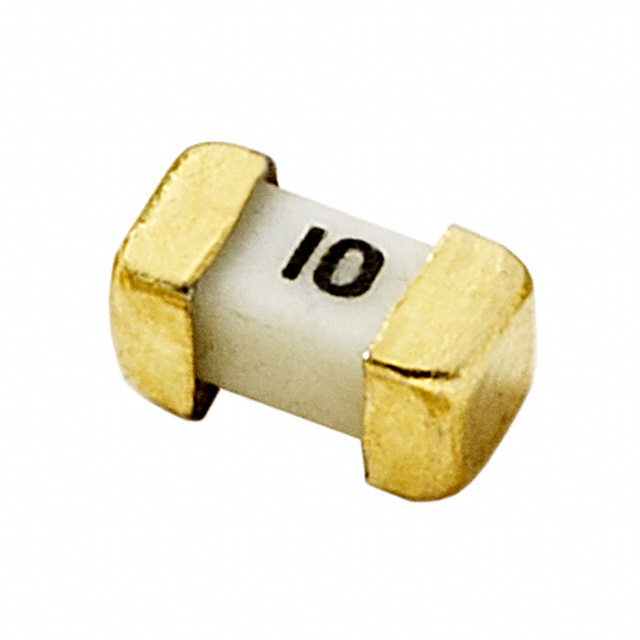

LITTELFUSE 0458007.DR 保险丝, SMD, 7A, 1206, 快熔型, 整卷
458 Series Fast-Acting 63 V 7 A 1206 NANO2 Surface Mount Ceramic Fuse
立创商城:
7A,63V
e络盟:
保险丝, SMD, 7A, 1206, 快熔型, 整卷
艾睿:
A great alternative to a circuit breaker, this a chip 0458007.DR fuse from Littelfuse will protect your electronics. This device has a current rating of 7. This fuse has a minimum operating temperature of -55 °C. It has 2 terminals. The 0458007.DR fuse has a solder pad termination style. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. The maximum DC voltage rating is 63 VDC. This product is 3.18 mm long, 1.58 mm tall and 1.58 mm deep. Its fuse is made from ceramic.
富昌:
458 Series Fast-Acting 63 V 7 A 1206 NANO2 Surface Mount Ceramic Fuse
Chip1Stop:
Fuse Chip Fast Acting 7A 63V SMD Solder Pad 1206 Ceramic T/R
Verical:
Fuse Chip Fast Acting 7A 63V SMD Solder Pad 1206 Ceramic T/R Automotive cULus
Newark:
# LITTELFUSE 0458007.DR Fuse, Surface Mount, NANO2 Series, 7 A, 32 VAC, 63 VDC, Very Fast Acting, 1206
额定电压DC 63 V
额定电压AC 32 V
额定电流 7 A
电阻 0.0175 Ω
工作温度Min -55 ℃
额定电压 63 V
额定电压DC Max 63 V
安装方式 Surface Mount
引脚数 2
封装公制 3216
封装 1206
长度 3.175 mm
宽度 1.575 mm
高度 1.58 mm
封装公制 3216
封装 1206
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
