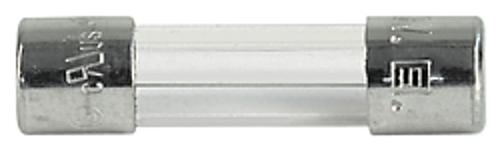

Schurter FST 时滞 T 熔丝Schurter FST 熔丝是可靠的初级保护设备,应用非常广泛。 玻璃主体可快速识别事故,从而可快速轻松地更换。 Schurter 延时熔丝在避免故障跳闸时非常有用。IEC 标准熔丝。 低断开容量。 ### 熔丝,反浪涌 - 玻璃体
FST 时滞 T 熔丝
Schurter FST 熔丝是可靠的初级保护设备,应用非常广泛。 玻璃主体可快速识别事故,从而可快速轻松地更换。 Schurter 延时熔丝在避免故障跳闸时非常有用。
IEC 标准熔丝。
低断开容量。
得捷:
FUSE GLASS 5A 250VAC 5X20MM
欧时:
Schurter 保险管, 熔断速度 T, 5A, 直径 5mm, 5 x 20mm, 250V ac
艾睿:
A great alternative to a circuit breaker, this a miniature 0034.3124 fuse from Schurter will protect your electronics. This device has a maximum power dissipation of 1.6 W. Its maximum power dissipation is 1.6 W. This device has a current rating of 5. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 0034.3124 fuse has a cartridge termination style. The maximum AC voltage rating is 250 VAC. This product is 20 mm long with a diameter of 5.2 mm. Its fuse is made from glass.
Allied Electronics:
Fuse; Cylinder; Time-Lag; 5 A; 250 VAC; 5x20mm; Glass; Cartridge
安富利:
FST 5X20 FUSE 5A T
Chip1Stop:
Fuse Miniature Slow Blow Acting 5A 250V Holder Cartridge 5 X 20mm Glass
TME:
Fuse: fuse; time-lag; glass; 5A; 250VAC; 5x20mm; FST
Verical:
Fuse Miniature Slow Blow Acting 5A 250V Holder Cartridge 5 X 20mm Glass Box CCC/PSE/VDE/cULus
Newark:
# SCHURTER 0034.3124 Fuse, Cartridge, FST Series, 5 A, 250 V, 5mm x 20mm, 0.2" x 0.79", 50 A
儒卓力:
**FST 5A SLOW 250V 5x20 Glass **
MASTER:
Fuse - Cartridge - Time Delay - 5 A - 250 V - 5mm x 20mm - 0.2" x 0.79" - FST Series.
Online Components:
FST 5x20, 5 A, 250 VAC, Time-Lag T, Non-Resettable Fuse
CDI:
FST 5X20 FUSE 5A T
Electro Sonic:
Fuse - Cartridge - Time Delay - 5 A - 250 V - 5mm x 20mm - 0.2" x 0.79" ...
额定电压DC 250 V
额定电压AC 250 V
额定电流 5 A
耗散功率 1.6 W
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 1.6 W
额定电压 250 VAC
额定电压AC Max 250 V
引脚数 2
封装 5mm x 20mm
长度 20 mm
宽度 5 mm
直径 5.00 mm
封装 5mm x 20mm
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
制造应用 Industrial, Safety
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536100040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
0034.3124 Schurter | 当前型号 | 当前型号 |
0219005.MXABP 力特 | 类似代替 | 0034.3124和0219005.MXABP的区别 |
S506-5-R 库柏 | 类似代替 | 0034.3124和S506-5-R的区别 |
BK/GDC-5A 伊顿巴斯曼 | 类似代替 | 0034.3124和BK/GDC-5A的区别 |
