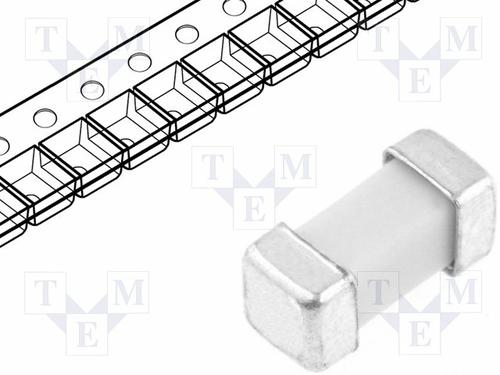

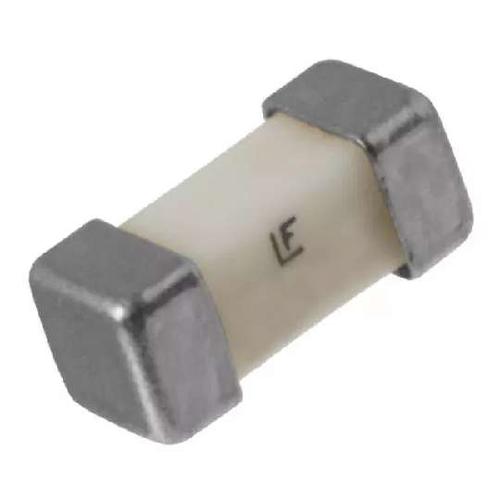

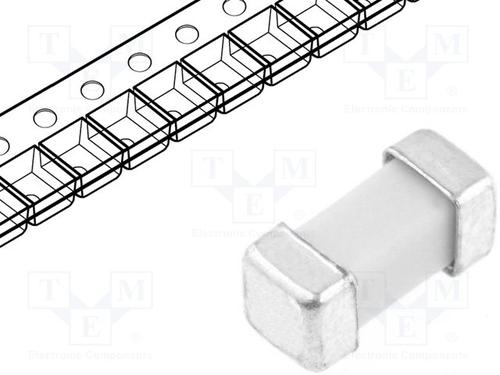

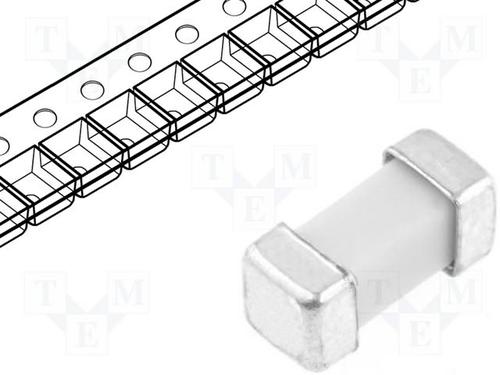

LITTELFUSE 04513.15MRL 保险丝, 快速熔断, SMD, 3.15A
451 系列 NANO2 表面安装熔丝
Littelfuse 451 系列 NANO2 表面安装熔丝是非常小的架空导线 WIA 方形表面安装器件,特别适用于次级侧电路过电流保护应用。
超快反应
小尺寸
低温降额
### 认可
CSA, UL
欧时:
Littelfuse 3.15A电流 FF熔度 不可复位表面固定熔断器 04513.15MRL, 6.1 x 2.69 x 2.69mm, 125V
立创商城:
3.15A 125V 快断
贸泽:
表面贴装式保险丝 125VAC 3.15A .0215ohms 451 NANO2
e络盟:
表面安装保险丝, 3.15 A, NANO2系列, 125 VAC, 32 VDC, 非常快速反应, SMD
艾睿:
Be protected by adding a chip 04513.15MRL fuse developed by Littelfuse. This device has a current rating of 3.15. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 04513.15MRL fuse has a solder pad termination style. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. This product will be shipped in tape and reel packaging so that components can be mounted effectively. The maximum AC voltage rating is 125 VAC and the maximum DC voltage rating is 125 VDC. This product is 6.1 mm long, 2.69 mm tall and 2.69 mm deep. Its fuse is made from ceramic.
Allied Electronics:
3.15A FF Non-Resettable Surface Mount Fuse, 125 V
Chip1Stop:
Fuse Chip Very Fast Acting 3.15A 125V SMD Solder Pad 2410 Ceramic T/R
TME:
Fuse: fuse; ultra rapid; ceramic; 3.15A; 125VAC; 125VDC; SMD
Verical:
Fuse Chip Very Fast Acting 3.15A 125V SMD Solder Pad 2410 Ceramic T/R CE/CSA/PSE/UL
Newark:
# LITTELFUSE 04513.15MRL Fuse, Surface Mount, NANO2 Series, 3.15 A, 125 VAC, 32 VDC, Very Fast Acting, SMD
DeviceMart:
Voltage=125V, Current = 3.15A, Littelfuse SMD퓨즈
Win Source:
FUSE BOARD MNT 3.15A 125VAC/VDC
触点电镀 Silver
额定电压DC 125 V
额定电压AC 125 V
额定电流 3.15 A
耗散功率 0.075 W
电阻 0.0215 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 125 V
额定电压DC Max 125 V
额定电压AC Max 125 V
安装方式 Surface Mount
引脚数 2
封装 SMD-2
长度 6.1 mm
宽度 2.69 mm
高度 2.69 mm
直径 2.69 mm
封装 SMD-2
工作温度 -55℃ ~ 125℃
产品生命周期 Not Recommended for New Design
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
04513.15MRL Littelfuse 力特 | 当前型号 | 当前型号 |
04513.15MRSN 力特 | 类似代替 | 04513.15MRL和04513.15MRSN的区别 |
04533.15MR 力特 | 类似代替 | 04513.15MRL和04533.15MR的区别 |
04513.15MR 力特 | 功能相似 | 04513.15MRL和04513.15MR的区别 |
