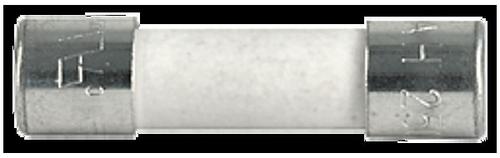

SCHURTER 0001.1014 Fuse, Cartridge, SP Series, 10A, 250V, 5mm x 20mm, 0.2" x 0.79", 1.5kA
The is a 10A/250VAC quick-acting Non-resettable Fuse with ceramic tube and nickel-plated copper alloy end caps. This SP-series fuse features high breaking capacity. Provides low voltage primary and secondary protection. Devices meet applicable international safety standards. Used for primary protection in equipment.
- .
- 200mV Maximum voltage drop
- .
- 4000mW Maximum Power dissipation 1.5 In
- .
- -55 to 125°C Operating temperature range
额定电压DC 250 V
额定电压AC 250 V
额定电流 10 A
耗散功率 4 W
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 250 V
额定电压AC Max 250 V
引脚数 2
封装 5mm x 20mm
长度 20 mm
宽度 5 mm
直径 5.20 mm
封装 5mm x 20mm
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
制造应用 Safety
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536100040
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0001.1014 Schurter | 当前型号 | 当前型号 |
0001.1014.PT Schurter | 完全替代 | 0001.1014和0001.1014.PT的区别 |
0001.1014.G Schurter | 完全替代 | 0001.1014和0001.1014.G的区别 |
BK/S501-10-R 伊顿巴斯曼 | 类似代替 | 0001.1014和BK/S501-10-R的区别 |
