031-224概述

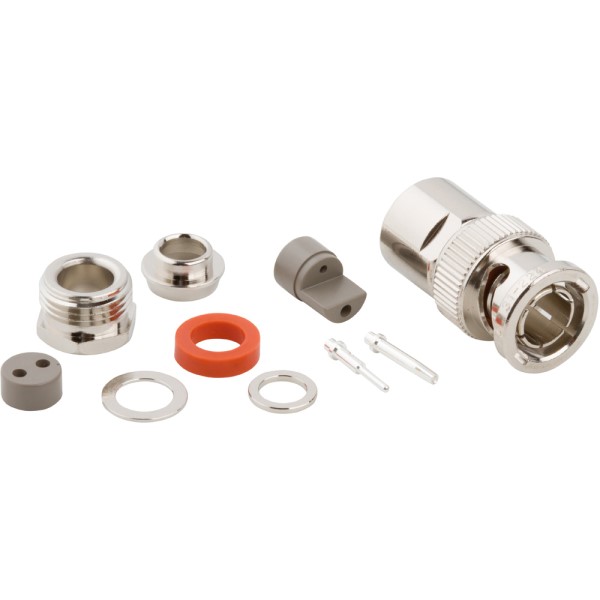

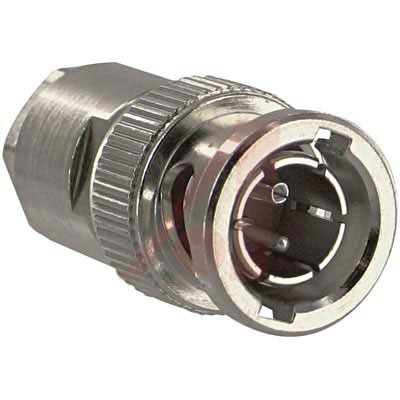

Conn Twin-BNC Adapter PL 0Hz to 100MHz 50Ω Solder ST Cable Mount Silver

Twin BNC Connector Series, Brass, Nickel Finish Material, TFE or Noryl Insulation

* Bulkhead receptacle

* Polarized key and keyway construction guarantees correct dual contact mate

* Large threaded connectors designed for rugged use

* Crimp contacts ensures lower cost of installation

Twin BNC connectors are used with conductor cables and operates from 0-200 MHz. Due to the improved shielding characteristic, these connectors are used in balanced low level and high sensitivity circuits.

031-224中文资料参数规格
技术参数

触点电镀 Silver

拔插次数 500

工作温度Max 85 ℃

工作温度Min -55 ℃

额定电压 100 V

封装参数

安装方式 Solder

物理参数

触点材质 Brass

绝缘材质 Tetrafluoroethylene TFE

其他

包装方式 Bag

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536694010

数据手册

在线购买031-224
型号: 031-224
描述:Conn Twin-BNC Adapter PL 0Hz to 100MHz 50Ω Solder ST Cable Mount Silver
