二百三十分之二百二十九系列无铅2AG ， SLO- Blo®保险丝和指示SLO- Blo®保险丝 229/230 Series Lead-Free 2AG, Slo-Blo® Fuse and Indicating Slo-Blo® Fuse
Be protected by adding a subminiature fuse developed by . This device has a current rating of 3. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 0230003.DRT1P fuse has a cartridge termination style. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. The maximum AC voltage rating is 250 VAC. This product is 14.48 mm long with a diameter of 4.7 mm. Its fuse is made from glass.
额定电压DC 125 V
额定电压AC 250 V
额定电流 3 A
电阻 0.038 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 250 V
额定电压AC Max 250 V
安装方式 Through Hole
引脚数 2
封装 Non-Standard

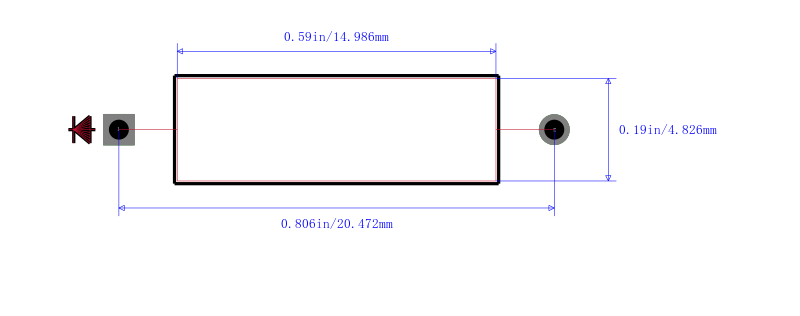

长度 14.48 mm
直径 4.70 mm
封装 Non-Standard
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
