04661.75NR

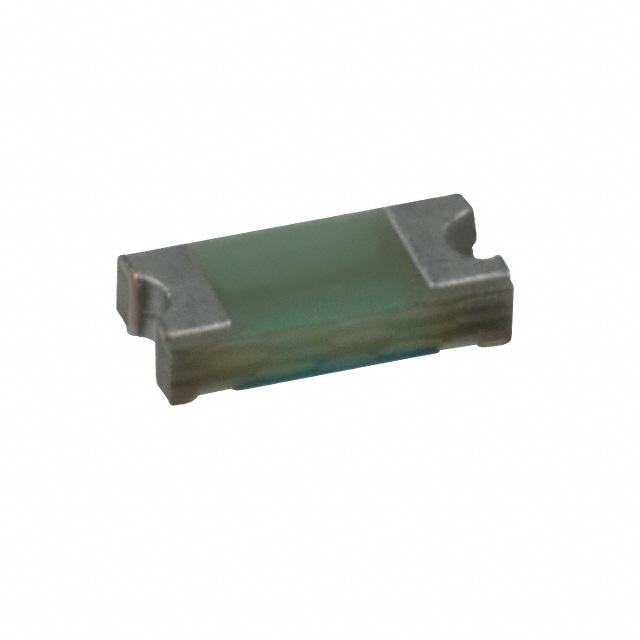

LITTELFUSE  04661.75NR  保险丝, 1206, 甚快速熔断, 1.75A

额定电流Current Rating| 1.75A \---|--- 额定电压ACVoltage Rating - AC| 125V 额定电压DCVoltage Rating - DC| 125V 分断能力Interrupting Rating| 50A 熔断积分I2T A2secMelting I²t| Description & Applications| •THIN-FILM SURFACE MOUNT •Very Fast-Acting Thin-Film Type 描述与应用| •薄膜表面贴装 •非常快熔型薄膜型

立创商城:
1.75A 63V 快断

e络盟:
表面安装保险丝, 1.75 A, 466系列, 63 VAC, 63 VDC, 非常快速反应, 1206

艾睿:
A great alternative to a circuit breaker, this a chip 04661.75NR fuse from Littelfuse will protect your electronics. This device has a current rating of 1.75. This fuse has a minimum operating temperature of -50 °C and a maximum of 90 °C. It has 2 terminals. The 04661.75NR fuse has a solder pad termination style. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. The maximum AC voltage rating is 63 VAC and the maximum DC voltage rating is 63 VDC. This product is 3.18 mm long, 0.58 mm tall and 1.52 mm deep.

富昌:
466 系列 特快熔断 63 V 1.75 A 1206 表面贴装 薄膜 保险丝

Chip1Stop:
Fuse Chip Very Fast Acting 1.75A 63V SMD Solder Pad 1206 T/R

Verical:
Fuse Chip Very Fast Acting 1.75A 63V SMD Solder Pad 1206 T/R CSA

Newark:
# LITTELFUSE  04661.75NR  Fuse, Surface Mount, 466 Series, 1.75 A, 63 VAC, 63 VDC, Very Fast Acting, 1206

Win Source:
FUSE BOARD MOUNT 1.75A 63VAC/VDC
