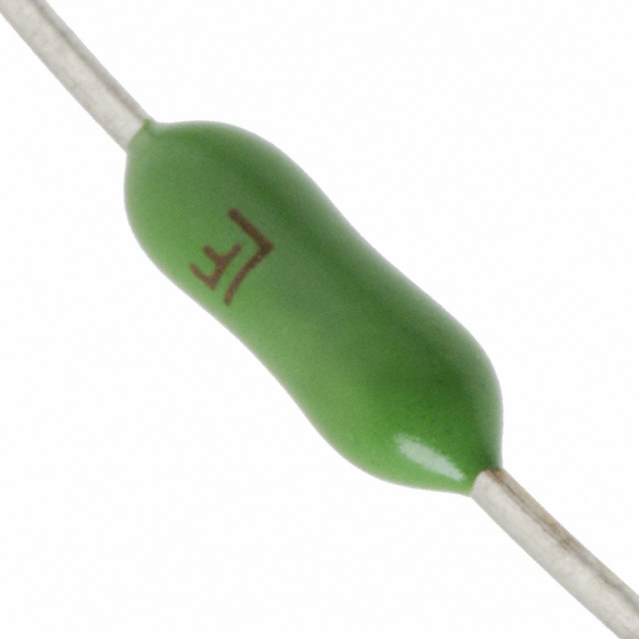

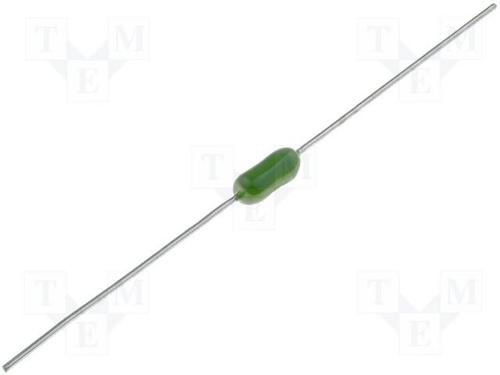

251/253系列， PICO® II ，速度非常快熔保险丝 251/253 Series, PICO® II, Very Fast-Acting Fuse
The is a 2A very fast-acting Axial Leaded Fuse with encapsulated epoxy-coated pure tin-coated copper wire leads body. The PICO® II very fast-acting fuse is designed to meet an extensive array of performance characteristics. It provides secondary protection for space constrained applications.
- .
- Small size
- .
- Low temperature rerating
- .
- -55 to 125°C Operating temperature range
额定电压DC 125 V
额定电压AC 125 V
额定电流 2 A
易燃性等级 UL 94 V-0
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 125 V
额定电压AC Max 125 V
安装方式 Through Hole
引脚数 2
封装 Axial
长度 7.11 mm
直径 2.41 mm
封装 Axial
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape, Ammo Pack
制造应用 Lighting, Power Management, Consumer Electronics, Audio, Medical, Imaging, Video & Vision
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0251002.MAT1L Littelfuse 力特 | 当前型号 | 当前型号 |
0251002.MRT1L 力特 | 完全替代 | 0251002.MAT1L和0251002.MRT1L的区别 |
0251002.MXL 力特 | 完全替代 | 0251002.MAT1L和0251002.MXL的区别 |
0251002.NRT1L 力特 | 完全替代 | 0251002.MAT1L和0251002.NRT1L的区别 |
