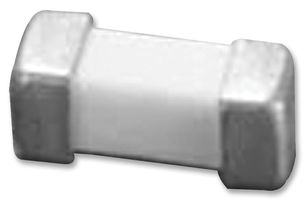

LITTELFUSE 045401.5MR 保险丝, SMD, 1.5A, 时间延迟
The NANO2 454 series Slo-Blo® surface-mount Time Lag Fuse has enhanced inrush withstand characteristics over the NANO² fast-acting fuse. The unique time-delay feature of this fuse design helps to solve the problem of nuisance opening by accommodating inrush current that normally cause a fast-acting fuse to open.
额定电压DC 125 V
额定电压AC 125 V
额定电流 1.5 A
电阻 0.093 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 125 V
额定电压DC Max 125 V
额定电压AC Max 125 V
安装方式 Surface Mount
引脚数 2
封装 SMD-2
长度 6.1 mm
宽度 2.69 mm
高度 2.69 mm
封装 SMD-2
工作温度 55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Industrial, 车用, 医用, Medical, Computers & Computer Peripherals, Automation & Process Control, Automotive, Consumer Electronics, HVAC, 消费电子产品, Communications & Networking, 通信与网络, 安全, 工业, Safety, 自动化与过程控制, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
045401.5MR Littelfuse 力特 | 当前型号 | 当前型号 |
045401.5NR 力特 | 完全替代 | 045401.5MR和045401.5NR的区别 |
