031-5329-51RFX

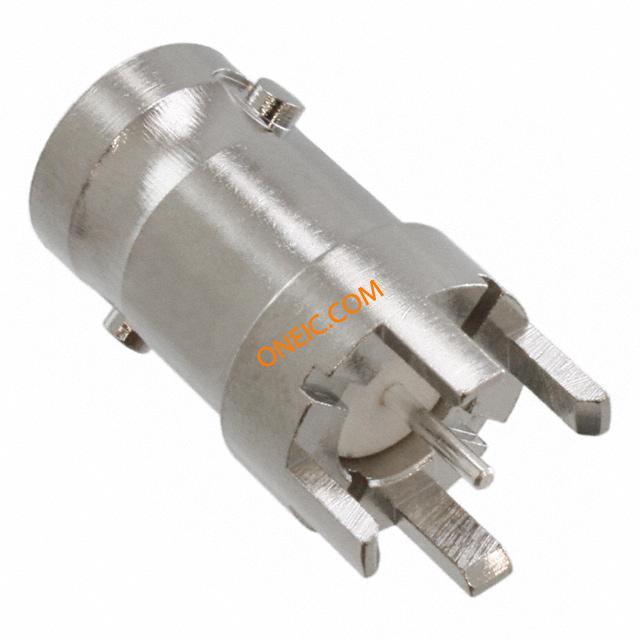

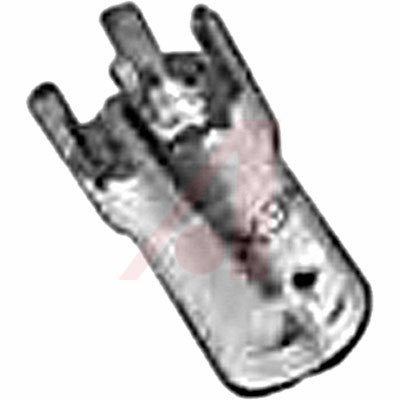

Conn BNC RCP 0Hz to 4GHz 50Ω Solder ST Thru-Hole Silver

Receptacle, 50 Ohms Impedance, BNC Cable Type

** Note:** These connectors meet or exceed military specification, but aren"t on the QPL and are intended for commercial use only. Military specification numbers, where shown, are for reference only. Two distinct types of 75 Ohm BNC are available, both mate with each other and with 50 Ohm BNCs. Type 1 is designated 75-T1 and provides constant 75 Ohm performance with low VSWR DC to 4 GHz. Type 2 is designated 75-T2 and is usable with low reflection DC to 1 GHz. For applications above 1 GHz, Type 1 is recommended.

Post-terminal 4 legs. 0.433" base, 0.176" long-post terminal, 0.037" dia.

BNC receptacle connector type.
