0015244557

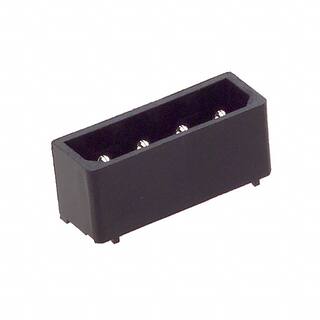

5.08毫米（ 0.200 “ ）间距磁盘驱动器电源连接系统头，垂直，通孔， 4个电路，无铅， 2.12毫米（ 0.083 ” ）的PC尾长，没有PCB定位器钉 5.08mm .200" Pitch Disk Drive Power Connection System Header, Vertical, Through Hole, 4 Circuits, Lead-free, 2.12mm .083" PC Tail Length, without PCB Locator Peg

Connector Header Through Hole 4 position 0.200" 5.08mm

得捷:
CONN HEADER VERT 4POS 5.08MM

艾睿:
There won&s;t be any energy loss when you power up your circuit using the 0015244557 power connector from Molex. This HDR connector&s;s 4 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a maximum voltage rating of 250 VAC. This connector has a single port. It has a header type gender. It has a straight body orientation. Its pitch is 5.08 mm. This device has a maximum current rating of 6.5 A/contact. 0015244557 is housed in polychlorinated terphenyl. This component will be shipped in tray format. This product is 23.44 mm long, 10.27 mm tall and 8.28 mm deep. This power connector has an operating temperature range of -40 °C to 105 °C. Its 4 terminals use the solder termination method.

安富利:
Conn Power HDR 4 POS 5.08mm Solder ST Thru-Hole 4 Terminal 1 Port Tray

Chip1Stop:
Conn Power HDR 4 POS 5.08mm Solder ST Thru-Hole 4 Terminal 1 Port Tray

Verical:
Conn Power HDR 4 POS 5.08mm Solder ST Thru-Hole 4 Terminal 1 Port Tray
