Conn Power HDR 2POS 7.49mm Solder RA Thru-Hole 4 Terminal 1Port Tray
位置 接头，公型刀片 焊接 0.295"（7.50mm） 通孔，直角
得捷:
CONN HDR 2POS 7.50MM R/A SLDR
立创商城:
0431603102
艾睿:

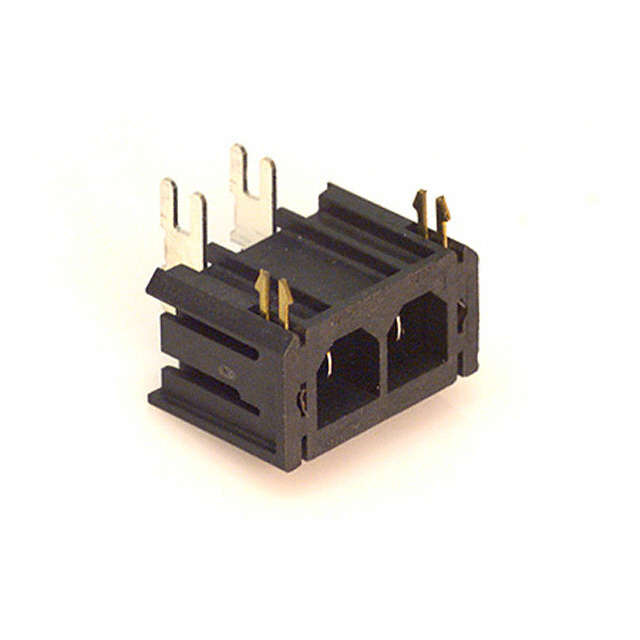

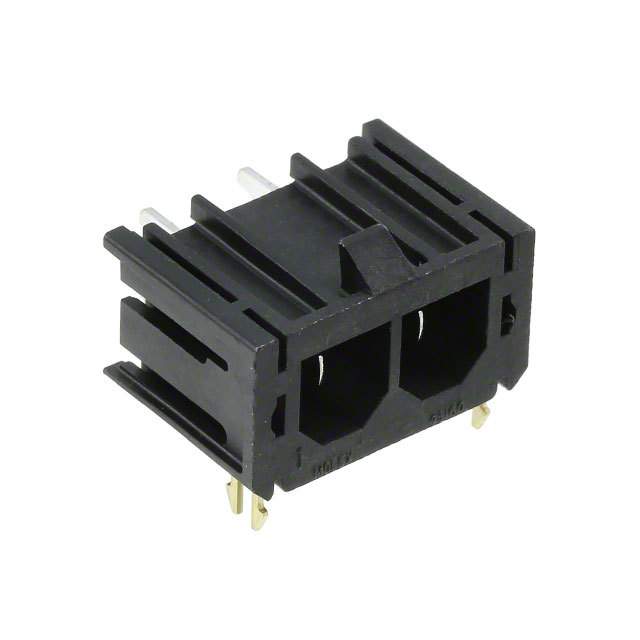

Use the 0431603102 power connector from Molex to power up your circuit with the least amount of losses. This HDR connector&s;s 2 contacts that are made out of brass and plated with tin over copper. It has a maximum voltage rating of 600 V. Its pitch is 7.49 mm. This connector has a single port. It has a header type gender. It has a right angle body orientation. This device has a maximum current rating of 18 A/contact. 0431603102 is housed in nylon 4/6. The component will be shipped in tray format. This power connector has an operating temperature range of -40 °C to 75 °C. This product is 21.08 mm long, 13.38 mm tall and 19.79 mm deep. Its 4 terminals use the solder termination method.
安富利:
Conn Power HDR 2 POS 7.49mm Solder RA Thru-Hole 4 Terminal 1 Port Tray
Chip1Stop:
Conn Wire to Board HDR 2 POS 7.49mm Solder RA Thru-Hole Tray
Verical:
Conn Wire to Board HDR 2Power POS 7.49mm Solder RA Side Entry Thru-Hole Sabre Tray
