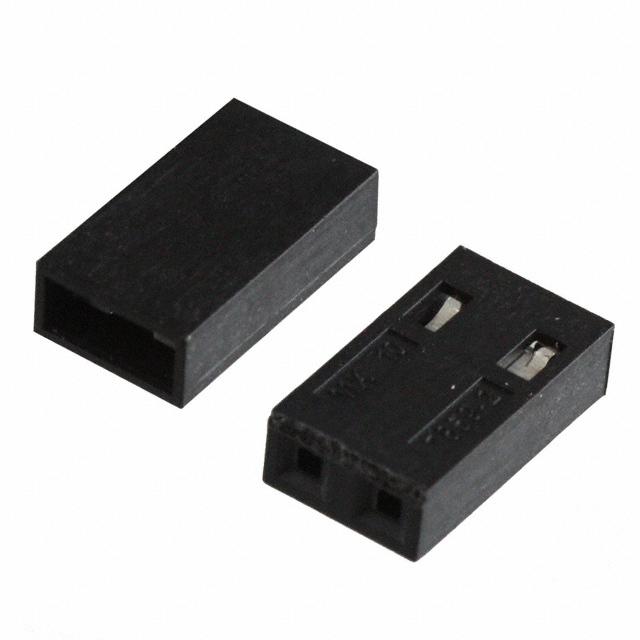

2.54毫米（ .100“ ）间距C- Grid®分流端子外壳，全锡（Sn ） ， 2电路，具有开放性的结局 2.54mm .100" Pitch C-Grid® Shunt Terminal Housings, All Over Tin Sn, 2 Circuits,with Open End
2（1 x 2） 针位分路 黑色 顶部关闭 0.100"（2.54mm） 锡
得捷:
CONN SHUNT CLOSED TOP .100 TIN
艾睿:
In situations where you are required to run components in a parallel or short-circuit layout, the 0015381026 connector from Molex can help you. This F connector&s;s 2 contacts that are made out of phosphor bronze and plated with tin-lead. It has a maximum voltage rating of 250 V. It has a female type gender. Its pitch is 2.54 mm. It has a straight body orientation. This is a 1-row connector. This device has a maximum current rating of 5 A/contact. This product is 5.08 mm long, 2.54 mm tall and 8.81 mm deep. 0015381026 is housed in black polyester. This terminal block jumper has an operating temperature of -40 to 105 °C.
Verical:
Conn Shunt F 2 POS 2.54mm ST SL™ Bag
