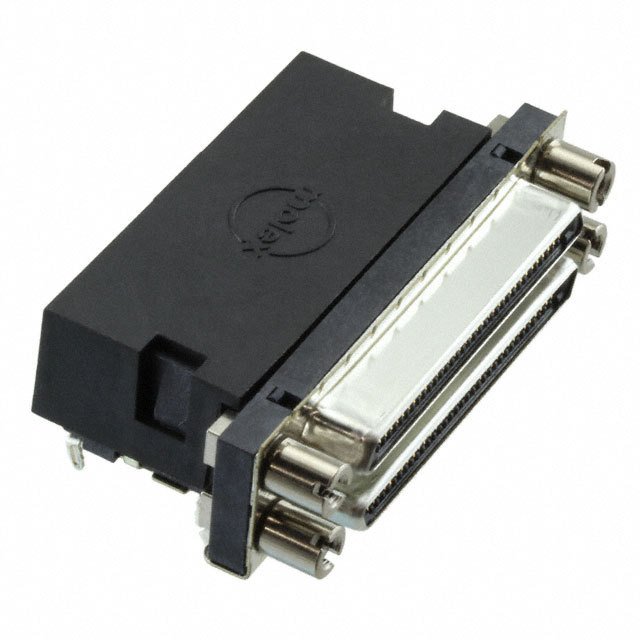

0.80毫米（ .031 “ ）间距超+ ™ VHDCI线对板插座，堆积，右Anglewith或不增强的盾，版本4的足迹， 136电路 0.80mm .031" Pitch Ultra+™ VHDCI Wire-to-Board Receptacle, Stacked, Right Anglewith or without Enhanced Shield, Version 4 Footprint, 136 Circuits
User inputs and outputs can be easily controlled by this vhdci interface connector from . This RCP connector"s 136 contacts that are made out of phosphor bronze alloy and plated with tin. It has a receptacle type gender. It has a right angle body orientation. Its pitch is 1.6 mm. This connector has a single port. It has a maximum voltage rating of 30 VDC|30VAC. This device has a maximum current rating of 0.5 A/contact. 0743370054 is housed in thermoplastic. The item will be shipped in tray orientation. This product is 42.7 mm long, 12.77 mm tall and 24.82 mm deep. Its 136 terminals use the solder termination method. This interface connector has an operating temperature range of -55 °C to 85 °C.
