0039532144

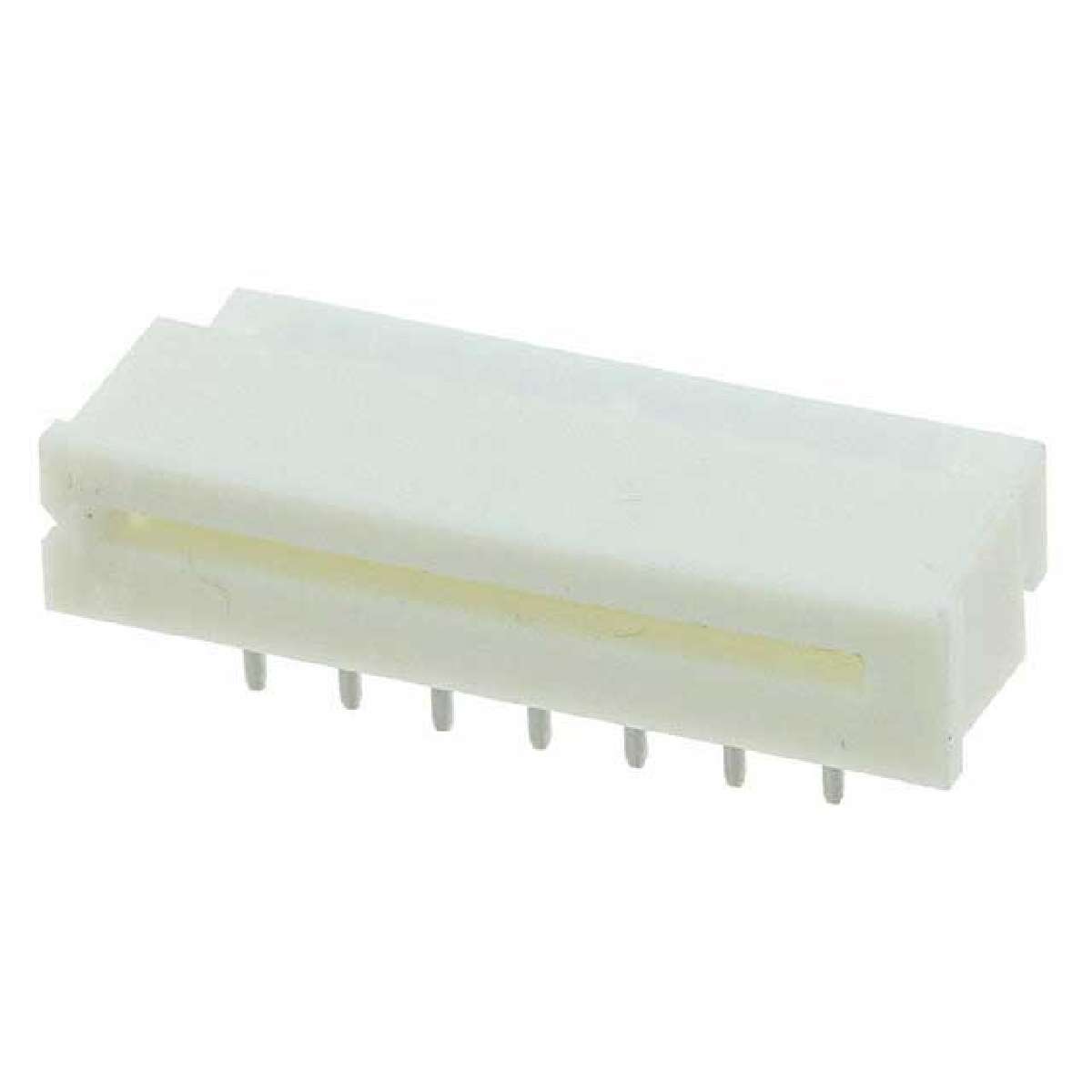

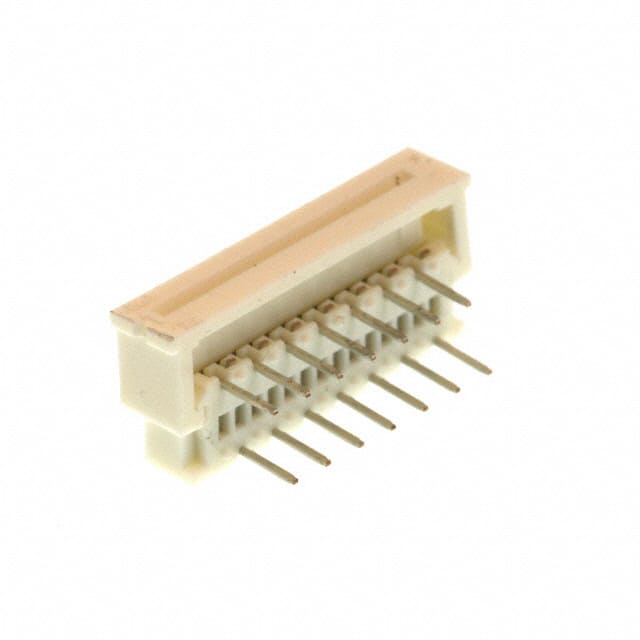

1.25毫米（ .049 “ ）间距FFC / FPC连接器，通孔，直角， ZIF ，顶部触点类型， 14电路，无铅 1.25mm .049" Pitch FFC/FPC Connector, Through-Hole, Right Angle, ZIF, Top Contact Style, 14 Circuits, Lead-free

Optimize the design of a space-limited electronic device with this fpc connector flexible flat cable from . This socket type connector"s 14 contacts that are made out of phosphor bronze and plated with tin bismuth over nickel. It has a right angle body orientation. This is a 1-row connector. It has a maximum voltage rating of 200 V. Its pitch is 1.25 mm. This device has a maximum current rating of 1 A/contact. The item will be shipped in tray orientation. It uses the solder termination method. This product is 23.25 mm long, 5.4 mm tall and 9.8 mm deep. This flexible flat cable has an operating temperature of -20 to 80 °C. 0039532144 is housed in natural polybutylene terephthalate.
