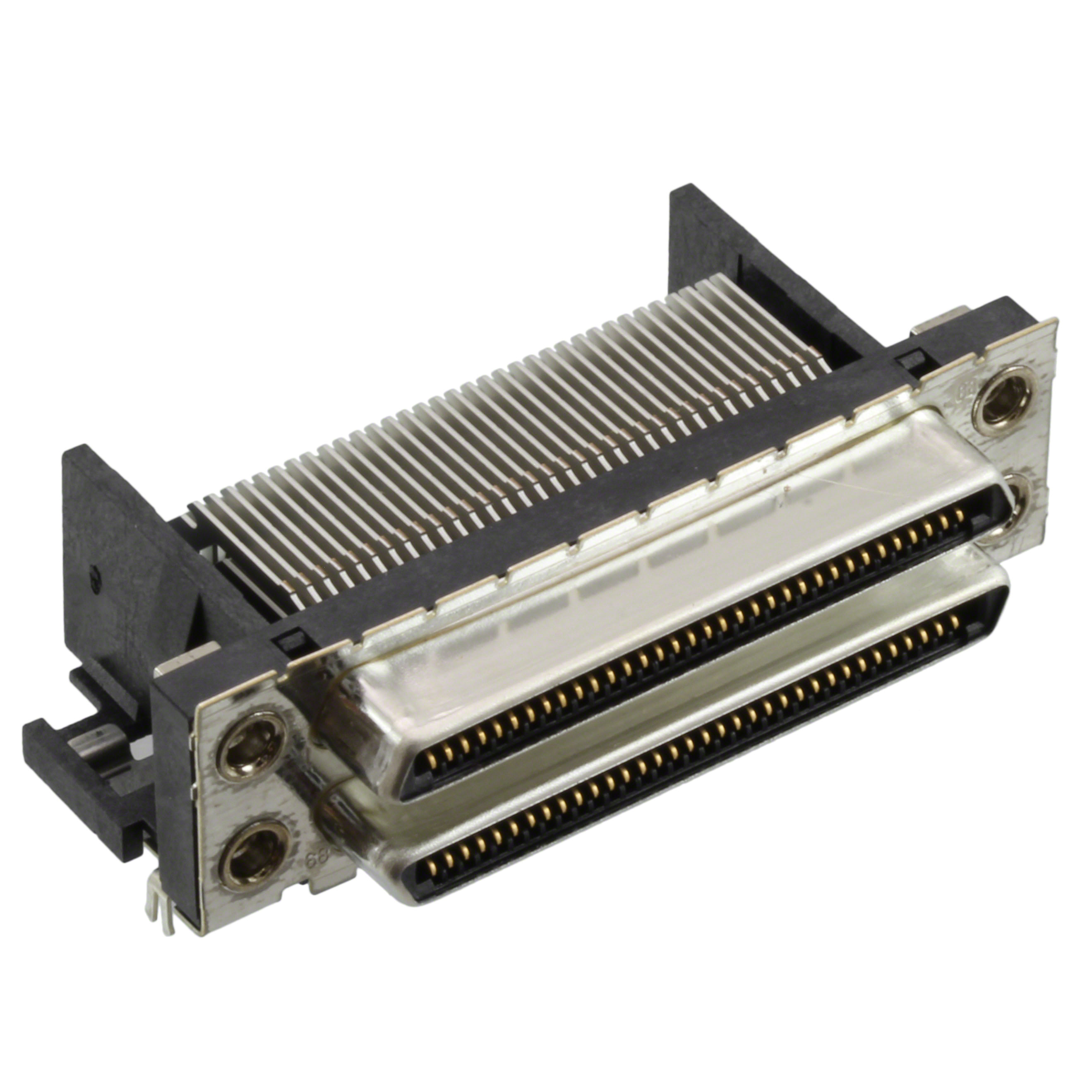

0.80毫米（ .031 “ ）间距超+ ™ VHDCI线对板插座，堆积，右Anglewith增强盾，版本1的脚印， 136电路 0.80mm .031" Pitch Ultra+™ VHDCI Wire-to-Board Receptacle, Stacked, Right Anglewith Enhanced Shield, Version 1 Footprint, 136 Circuits
Properly implement video to your system by using this vhdci interface connector manufactured from . This RCP/RCP connector"s 68 / 68 contacts that are made out of phosphor bronze alloy and plated with gold over palladium nickel. Its pitch is 1.6 mm. It has a right angle body orientation. It has a maximum voltage rating of 30 V. This connector has 2 ports. 0743370015 is housed in thermoplastic. This device has a maximum current rating of 0.5 A/contact. This component comes in tray packaging, useful for fast picking and placing of your parts. This product is 42.7 mm long, 12.77 mm tall and 24.82 mm deep. This interface connector has a minimum operating temperature of -55 °C and a maximum of 85 °C. Its 136 terminals use the solder termination method.
