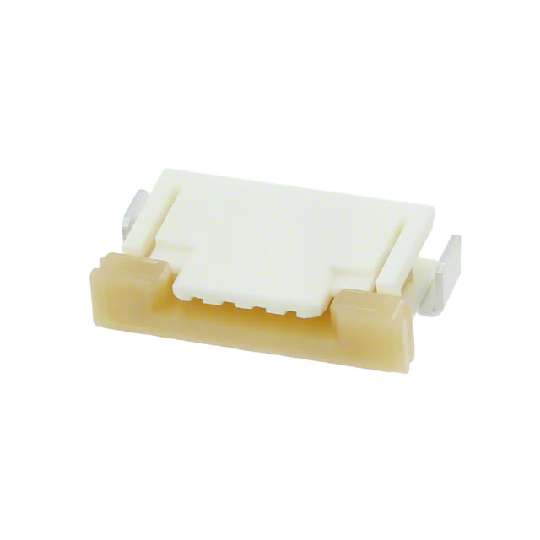

1.00毫米( .039 “ )间距FFC / FPC连接器, SMT ,直角, ZIF ,联系顶器形式, 4电路,无铅,金触点电镀,高阻隔性包装 1.00mm .039" Pitch FFC/FPC Connector, SMT, Right Angle, ZIF, Top Contact StyleReceptacle, 4 Circuits, Lead-free, Gold Contact Plating, High Barrier Packaging
This ffc/fpc connector flexible printed circuit from can have discrete components built on it. This socket type connector"s 4 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 125 V. Its pitch is 1 mm. This is a 1-row connector. It has a right angle body orientation. This device has a maximum current rating of 1 A/contact. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. 0522070460 is housed in nylon 4/6. This flexible flat cable has an operating temperature of -20 to 85 °C. This product is 10.3 mm long, 2.7 mm tall and 7.6 mm deep. It uses the solder termination method.
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
0522070460 Molex 莫仕 | 当前型号 | 当前型号 |
84952-4 泰科 | 功能相似 | 0522070460和84952-4的区别 |
ZF1-04-01-T-WT-TR 申泰电子 | 功能相似 | 0522070460和ZF1-04-01-T-WT-TR的区别 |
