0522071260

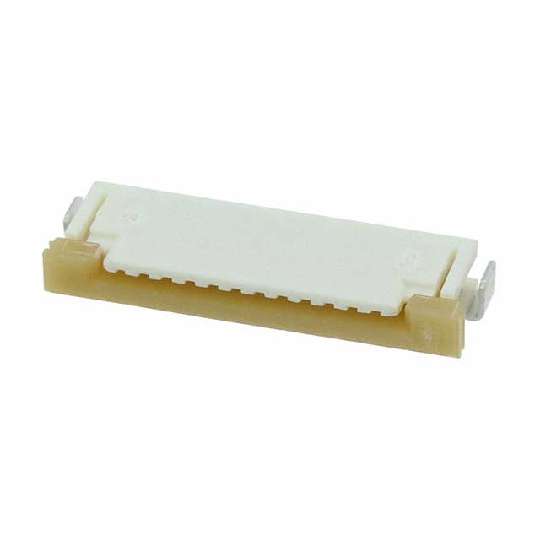

1.00毫米（ .039 “ ）间距FFC / FPC连接器， SMT ，直角， ZIF ，联系顶器形式， 12电路，无铅，金触点电镀，高阻隔性包装 1.00mm .039" Pitch FFC/FPC Connector, SMT, Right Angle, ZIF, Top Contact StyleReceptacle, 12 Circuits, Lead-free, Gold Contact Plating, High Barrier Packaging

12 位置 FFC，FPC 触点，顶部 0.039"（1.00mm） 表面贴装，直角

得捷:
CONN FFC FPC TOP 12POS 1MM R/A

立创商城:
1mm P数:12

艾睿:
Utilize FFC technology with this ffc/fpc connector 0522071260 flexible flat cable from Molex which can hold many transmission channels on a very narrow, very flat ribbon-like structure. It has a right angle body orientation. This is a 1-row connector. Its pitch is 1 mm. This socket type connector&s;s 12 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 125 V. This device has a maximum current rating of 1 A/contact. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This flexible flat cable has an operating temperature of -30 to 85 °C. This product is 18.3 mm long, 2.7 mm tall and 7.6 mm deep. 0522071260 is housed in nylon 4/6. It uses the solder termination method.

安富利:
Conn FFC/FPC Connector SKT 12 POS 1mm Solder RA SMD Embossed T/R

Chip1Stop:
Conn FFC/FPC Connector SKT 12 POS 1mm Solder RA SMD Embossed T/R

Verical:
Conn FFC/FPC Connector SKT 12 POS 1mm Solder RA SMD Easy-On™ T/R
